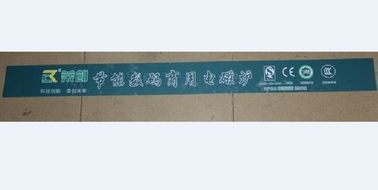

Waterproof Membrane Switch Panel With 3M467 / 3M468 Heat Resisting

Waterproof Membrane Switch Panel With 3M467 / 3M468 Heat Resisting
Waterproof Membrane Switch Panel With 3M467 / 3M468 Heat Resisting

Large Image :  Waterproof Membrane Switch Panel With 3M467 / 3M468 Heat Resisting

Product Details:
Place of Origin: Dongguan,Guangdong, China
Brand Name: Foundation
Certification: Raw Material Pass RoHS, SGS Test
Model Number: HC-MSO-304
Payment & Shipping Terms:
Minimum Order Quantity: 50/pcs
Price: Negotiable
Packaging Details: Each in Polybag, Then in Carton or as Per Request
Delivery Time: sample time:9days,mass production:12-15days
Payment Terms: T/T
Supply Ability: 100, 000PCS/Year
Detailed Product Description
High Light:

custom membrane switches

,

membrane overlays

Textured PC Waterproof Membrane Switch Overlay With 3M Adhesive , Lightweight




Product Description


All our circuit, graphic overlays and membrane switches are thoroughly tested and inspected before they leave our factory.
Flexible Printed Circuit
Material: Polyester witch conductive sliver and Carbon
Rear Adhesive: American3M 467MP, 3M 468MP, 3M9472LE, etc



Performance indicators:

1. Operating voltage: 35V DC


Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ At 100V(According the trace length and materials to confirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times



2. Mechanical Properties Actuation force: Switch stroke: 0.1 to 0.6mm


Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Female, male connector, solder pins and heat seal connectors are available


3. Environmental parameters


Operating Temperature: -40 - +80,
Storage temperature: -40 - +85
Humidity: 40, 90% -95%, 240 hours.
Matching color: Pantone color matching system.



Production Capacity: 1000000times
Unit price: Negotiable/
Shipment terms: EXW
Payment terms: T/T
Origin: Dongguang
Packing: In carton



Product Description



Materials Textured PC, gloss PC with matte finish, Autotype PET and PVC
Thickness 0.5, 0.7, 0.8 and 1.0mm
LED windows Clear or translucent with all colors
Embossed keys Polydome and rim
Metal dome Brand of Nicomatic and Innovan, nickel and gold plated
Tail With mylar and UV
Connector Nicomatic, FCI, Molex and Zif
Adhesive 3M 467, 468, 3M9495, 3M7945 and 3M7959
Notice We have the capacity to provide you membrane switches with other special requirements, such as waterproof, Shielding, Windows/Lens Coating, Embedded LEDs, UV glossy/ matte/ textured, etc.
