Matrix 3M467 And 3M468 Adhesive PCB Waterproof Membrane Switch For GPS

China Matrix 3M467 And 3M468 Adhesive PCB Waterproof Membrane Switch For GPS supplier

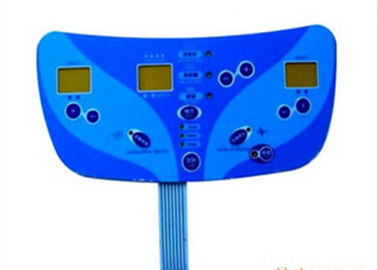

Large Image :  Matrix 3M467 And 3M468 Adhesive PCB Waterproof Membrane Switch For GPS

Product Details:

Place of Origin: China
Brand Name: TKM MS
Certification: ISO9001:2008, SGS,Rohs
Model Number: TKM—MS--345

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C
Supply Ability: 100000Pieces per month
Contact Now
Detailed Product Description

Matrix 3M467 And 3M468 Adhesive PCB Waterproof Membrane Switch For GPS


Quick Detail:


Name

EL MS

Custom processing

Yes

Color

foundations white, blue, green, blue, green, etc

EL Weight

0.12 (g)

EL thickness

0.32 (mm)

EL Size

1200 * 5000 can be spliced ​​(mm)

EL Power Source

AC-DC can be

Power

13

Voltage

220

Input Current

0.2



Product Features

In need of special light sources (eg: no shadows, no dizzying, brightness uniformity and neon effect ......), in with the environment needs (eg: a narrow space, complex shapes, temperature and power consumption constraints, vibration under the environment ......), the illusion is impossible to make up the traditional cold light source.
In addition, for printed mark, instructions, election propaganda, body decoration and interior design, photo or text on backlit transparent advertising material, EL cold light is the best light materials


EL Specifications Feature Description:
 1. Cool Works is a converted electrical energy, cold light source general operating voltage and frequency operating voltage can be adjusted after AC40V ~ AC220V, while the operating frequency can be 50 Hz to 4000 Hz, increasing the voltage will increase luminescence brightness, if the increase in frequency can increase the brightness, color and feel cold light blue.

2. EL cold light of life is not like traditional light sources have the sudden demise of the phenomenon, but after a long period of use, the brightness will gradually decreasing cold, voltage, frequency, temperature, moisture, cold light of life are affected key factor

3. The luminescent brightness of luminescent brightness can be obtained by photometric measurement, the luminance of the luminescent light source is usually expressed in units of photometric calculation, but the human eye is less easy to achieve such sensitivity, visual sense and generally photometer the standard of comparison, there will be a certain degree of error.

4. EL cold light source to produce power source, via a matching transformer inverter design (DRIVER) to drive, and the drive voltage and frequency of cold tablets, is consideration of the size of the area in accordance with rays, use of the environment, life, etc. conditions for supporting the design and development and production of professional production.

5. Cold light weight and thickness of cold tablets have a very attractive main condition is that the weight of its weight and thickness, cold tablets is 0.1 grams per square centimeter, and the thickness is 0.2mm ~ 0.5mm, the special requirements for some orders , weight and thickness of the luminescent film will be followed by change.



Specifications


Initial luminance

≥30-750 CD

Voltage range

AC50V—220V

Frequency

200HZ—1500HZ

Power rate

≤0.8MW/CM

Currency

≤0.15MA/CM

Life span

≥20000Hrs.



Applications:

1. The backlight applications: all kinds of electric computers, laptops, handheld game consoles, telephones, electronic organizers, electronic dictionaries, audio equipment, control panels, microwave oven control panel, fax machines, copiers, watches ...... etc.
2. Automotive: Car instrument panel, warning lights, vehicle exteriors, decorative door bar, third brake light ...... etc.
3. Architecture and interior applications: elevator floor marking, labeling instructions escape, decorative wall lights, night landscape decorative building, interior decorating
4. Safety, lifesaving: Night police, traffic police wearing cold warning clothing, safety signs at night, lifesaving instructions, ships, docks, etc.
5. Military and aerospace applications: military map backlighting, backlit instruments, airport runways at night riverboat instructions nighttime identification instructions, ground guide



Competitive Advantage:
1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
