Small Automatic Reset Thermal Overload Protector , High reliability

China Small Automatic Reset Thermal Overload Protector , High reliability supplier
Small Automatic Reset Thermal Overload Protector , High reliability supplier Small Automatic Reset Thermal Overload Protector , High reliability supplier

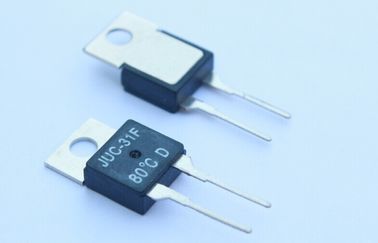

Large Image :  Small Automatic Reset Thermal Overload Protector , High reliability

Product Details:

Place of Origin: China
Brand Name: Wu Yin
Certification: ISO
Model Number: JUC-31F

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Contact Now
Detailed Product Description

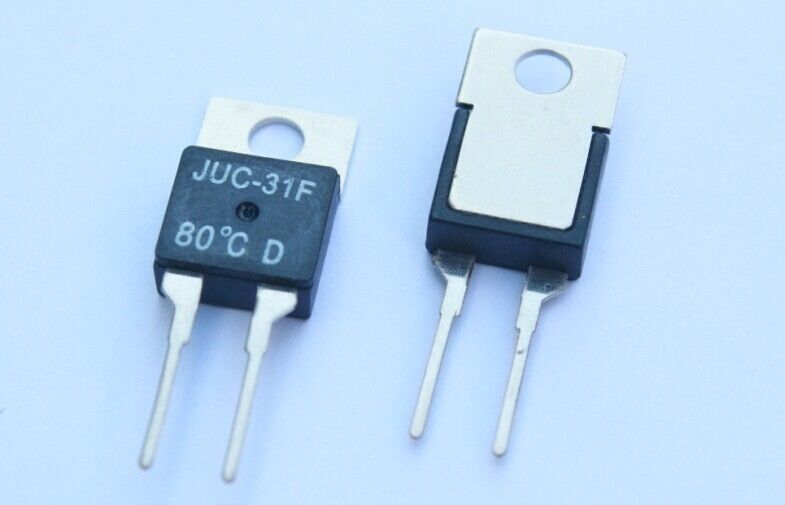

Small Automatic Reset Thermal Overload Protector , High reliability







Thermal overload protector JUC-31F is a sudden-jump temperature contact plastic thermostat , using international T0200 / Y220 standard package , with high reliability , sensitive and accurate small size ,Light weight , very easy to install. It is suitable for PCB circuit board , heat sink with, power device installation , etc.







Quick Detail :



  1. T0220 package
  2. Action temperature :-40~130℃
  3. Small size , easy to install
  4. High reliability
  5. Current and voltage : 250V 10A





Applications :



* Thermal Motor Protectors

* Thermal Protectors for Ballasts for Tubular Fluorescent Lamps

* Thermal Motor Protectors for Hermetic and Semi-Hermetic Motor-Compressors

* Automatic Electrical Pressure Sensing Controls, Including Mechanical Requirements

* Temperature Sensing Controls

* Motor Starting Relays

* Energy Regulators

* Electrically Operated Door Locks

* Humidity Sensing Controls

* Electric Actuators





Specifications:

  1. Overall Dimensions











  1. Technical Data





Contact Load

AC120V1A,DC48V1A,AC220V1A

Contact Type

D(Normally Closed)  H(Normally open)

Ambient Temperature

-55℃~+180℃

Over Heat Temperature

250℃(instantaneous)

Circuit Resistance

<50mΩ

Insulation Resistance

>100MΩ

Dielectric Strength

>1500V

Life Time

>10,000times

Weight

≤1.8g

Tolerance

±2.5℃ ±5℃





  1.  General Temperature Specifications:

Action Temperature Table

Action Temp.

Reset Temp.

Action Temp.

Reset Temp.

40±4℃

20±8℃

110±5℃

80±10℃

45±4℃

20±8℃

115±5℃

80±10℃

50±4℃

30±8℃

120±5℃

85±10℃

55±4℃

30±8℃

125±5℃

85±10℃

60±5℃

40±10℃

130±5℃

90±10℃

65±5℃

40±10℃





70±5℃

50±10℃





75±5℃

50±10℃





80±5℃

55±10℃





85±5℃

55±10℃





90±5℃

60±10℃





95±5℃

60±10℃





100±5℃

70±10℃





105±5℃

70±10℃
