UL 6AWG 750V 16A terminal block connectors Nylon PA66 with Steel Screw

UL 6AWG 750V 16A terminal block connectors Nylon PA66 with Steel Screw
UL 6AWG 750V 16A terminal block connectors Nylon PA66 with Steel Screw

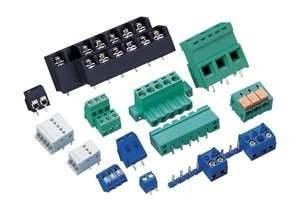

Large Image :  UL 6AWG 750V 16A terminal block connectors Nylon PA66 with Steel Screw

Product Details:
Place of Origin: China
Brand Name: Wu Yin
Certification: ISO
Model Number: GSO100
Number of Contacts: 1 - 10
Conductor Size: 11 - 20 AWG
Type: Other
colour: orange
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

electrical terminal block

,

pcb terminal block connector

 UL 6AWG 750V 16A terminal block connectors Nylon PA66 with Steel Screw

1.terminal block
2.Pitch:15mm H=29.5
3.Screw:M4,Steel,Zinc plated
4.Wire Protector :Brass,Tin plated
5.STDcolor:Orange/Gery




terminal block, GSO100, have been approved by CE IMQ ROHS VDE and UL. The details are as following:





Pitch 15mm H=29.5
Approval Applying UL VDE
Rated voltage 750V
Rated current 16A
Wire range 6-22AWG
Torque 0.4N.m
Screw M4,Steel,Zinc plated
Insulating material Nylon PA66  UL94V-0
Temperature range -40/+120
Terminal Brass,Ni plated
Wire Protector Brass,Tin plated
STD color Orange/Gery
