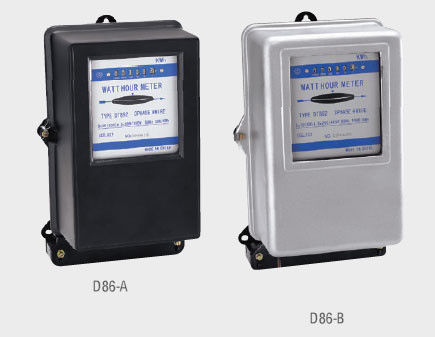

Three-phase 380V / 220V Electronic Watt-hour Meter , Aluminum electrical energy meter

Three-phase 380V / 220V Electronic Watt-hour Meter , Aluminum electrical energy meter
Three-phase 380V / 220V Electronic Watt-hour Meter , Aluminum electrical energy meter

Large Image :  Three-phase 380V / 220V Electronic Watt-hour Meter , Aluminum electrical energy meter

Product Details:
Place of Origin: China
Brand Name: Wu Yin
Certification: ISO
Model Number: D86
Accuracy Class: class 1.0|class 2.0
Active or not: Active
Case material: aluminum
Electricity type: AC
features: multi-function|waterproof
product name: Electronic Watt-hour Meter|electrical energy meter
Shape: Round
phase: Three-phase
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

kilowatt hour meter

,

digital watt hour meter





Three-phase 380V / 220V Electronic Watt-hour Meter , Aluminum electrical energy meter





Quick Detail:



  • Place of Origin: China
  • Brand Name: VECAS
  • Certificate:CE
  • Electricity Type: AC
  • Phase::3
  • Measure the rated frequency 50Hz and power loss of active energy met GB/T15283-94,    IEC521





Applications:



D86 series three-phase watt-hour meter are induction meters which are applicable to measure the rated frequency 50Hz and power loss of active energy meter. The series active energy meters are completely conformed to National Standard GB/T15283-94 and international Standard IEC521. All technical targets of reactive energy meter are completely conformed to National Standard GB/T15282-94 and international Standard IEC145.







Specifications:



Name

Type

Accuracy (class)

Rated voltage (V)

Rated current (A)

Connection Mode

Three-phase fourwire
active energy
watt-hour meter

DT862

2

3×380/220

3×1(2), 3×3(6), 3×1.5(6)

Input through current transformer

3×5(20), 3×10(40), 3×15(60)
3×20(80), 3×30(100)

Directly input

DT864

1

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

Three-phase threewire
active energy
watt-hour meter

DS862

2

3×380/220

3×1(2), 3×3(6), 3×1.5(6)

Input through current transformer

3×5(20), 3×10(40), 3×15(60)
3×20(80), 3×30(100)

Directly input

3×100

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

DS864

1

3×380

3×1(2), 3×3(6), 3×1.5(6)

Input through current transformer

3×100

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

Three-phase fourwire
active energy
watt-hour meter

DX862

2

3×380

3×1(2), 3×3(6), 3×1.5(6)

Input through current transformer

3×100

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

DX864

1

3×380

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

3×100

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

Three-phase threewire
active energy
watt-hour meter

DX865

2

3×380

3×1(2), 3×3(6), 3×1.5(6)

Input through current transformer

3×100

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer

DX863

1

3×380

3×1(2), 3×3(6), 3×1.5(6)

Input through current transformer

3×100

3×1(2), 3×3(6), 3×1.5(6)

Input through current voltage transformer
