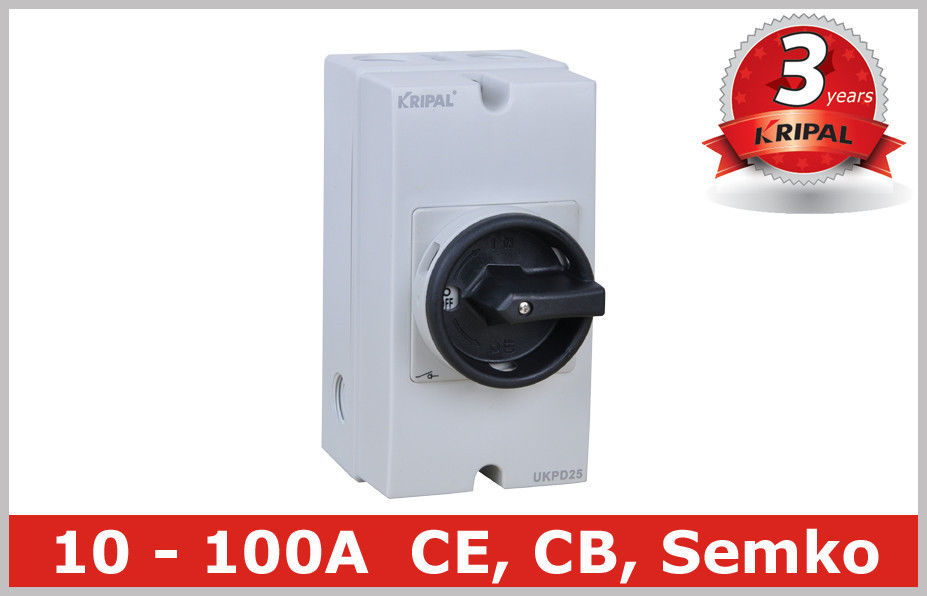

Solar PV 1000V DC Waterproof Rotary Isolator Switch Disconnector IP66

Solar PV 1000V DC Waterproof Rotary Isolator Switch Disconnector IP66
Solar PV 1000V DC Waterproof Rotary Isolator Switch Disconnector IP66 Solar PV 1000V DC Waterproof Rotary Isolator Switch Disconnector IP66

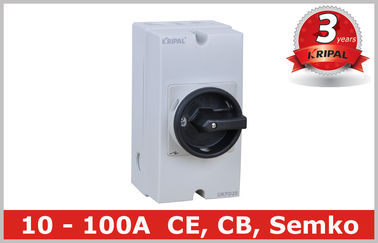

Large Image :  Solar PV 1000V DC Waterproof Rotary Isolator Switch Disconnector IP66

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKPD25
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Product: Rotary Isolator Switch Cable Access: M20/25 Knockouts
Protection Grade: IP65 Red/Yellow Rings: Lockable
Enclosure: Brand-new PC Earth Terminals: Included
High Light:

Rotary Cam Switch

,

Change Over Switch



Solar PV 1000V DC Waterproof Rotary Isolator Switch Disconnector IP66





All grid-connected generation systems (wind, PV, Hydro, CHP) must have G83 Grid-connection equipment, and must include a DC isolator on the DC side of the grid-tie inverter, and an AC-isolator on the AC side of the grid tie inverter.





Description:



KRIPAL offers a comprehensive range of isolating switches designed with safety in mind stand-stone and enclosed formats, this switch range are padlockable and availiable in yellow/ red or grey/black making it idea for any electrical isolation requirement, such as repair, maintenance installation and inspection.





Features:



1. Compact and suitable wire space is limited.



2. rail mounting for easy installation.



3. Easy cable access via M20/25 knockouts.



4. Load-breaking up to 8 times rated current making it ideal for motor isolation.



5. Double-break with silver rivets-superior performace, reliablity and long lasting.



6. Enclosure: brand-new PC, White.



7. Large padlockable red/yellow or grey/black handles.



8. Mechanical life: 20000.



9. Electrical life: 2000





Specifications:




Product DC rotary isolator switch Model Number UKPD25-X
Rated Voltage DC 1000V Polarized No
Poles 2 SIDES Mounting Type Wall
Rated Current 16, 25, 32A IP Rating IP65
Switch Material Nylon PA6 Box Polycarbonate
Limit short circuit capability DC1500V 15KA Breaking Capability DC 1500V 15KA
Wire Size 4.0-16.0mm Working temperature -5 - +65centigrades
Gland knockouts M20 or M25 Standard IEC60947-3: 2005





Data:



a. Utilization category:DC-21B

b. Amnient temperature: 50

c. UV resistant

d. can be switched under load





Applications:



UKPD25 series DC solar switch disconnetors in plastic enclosure, are apllicable in 1-15KW residential or commercial photovoltaic system, independent with inverter.This model are designed to keep solar more safe, the higest voltage can be reached 1000V.To ensure its stability and long service.



Mouting:



This DC rotary isolator switch can be mounted vertically, horizongtally, sideways and remians its IP66/IP67 protection rating





FAQ:



1. Samples: provided freely
2. Warranty: 3 years; every item is tested before delivery, professional testing lab in factory
3. ODM, OEM: acceptable; mould tooling is finished in our own mould tooling center

4. Replacement Terms: The faulty items will be replaced freely, once we confirm that they result from poor

quality or incorrect production. Regarding the delivery of replacements, it is negotiable between two parties.
