RCD Residual current circuit breaker RCCB

RCD Residual current circuit breaker RCCB
RCD Residual current circuit breaker RCCB

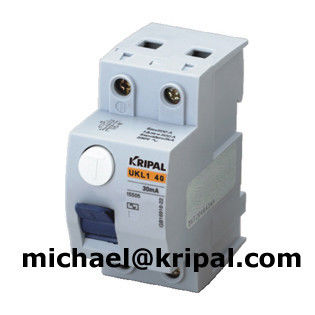

Large Image :  RCD Residual current circuit breaker RCCB

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKL1
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Packaging Details: Packed in standard exporting cartons
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/P
Detailed Product Description

RCD Residual current circuit breaker RCCB

NTechnical parameter


A. Conform to standard: GB16916.1
B. Rated voltage (Ue): 230V/400V; 50/60Hz
C. Rated current (A): 16, 25, 40, 63 A (2 poles and 4poles)
D. Rated leakage current: 10, 30, 100, 300, 500Ma
E. Electric life: ≥ 4000 times (on-off)
F. Mechanical life: ≥ 2000 times (on-off)
G. Case protection grade: IP40 after installing

Mechanical parameter

A. Installation mode: At the DIN rail of standard IEC
B. Terminal wiring capability: Conductor 1-25 mm
C. Width of shell: 2 poles 36mm; 4 poles 72 mm

Main characteristic

A. Various current specifications of leakage action ca easily ensure selective protection.
B. Inaccurate action resulting form the switch operation of electronic equipment can be avoided
C. Unless specified otherwise, the width of two-poles switch is two modules, four-poles(3P+N) is four modules

RCD Residual current circuit breaker RCCB 0

RCD Residual current circuit breaker RCCB 1

MORE INFORMATION, PLEASE CHECK THE ATTACHED CATALOGUE



Catalogue: as below PDF file
