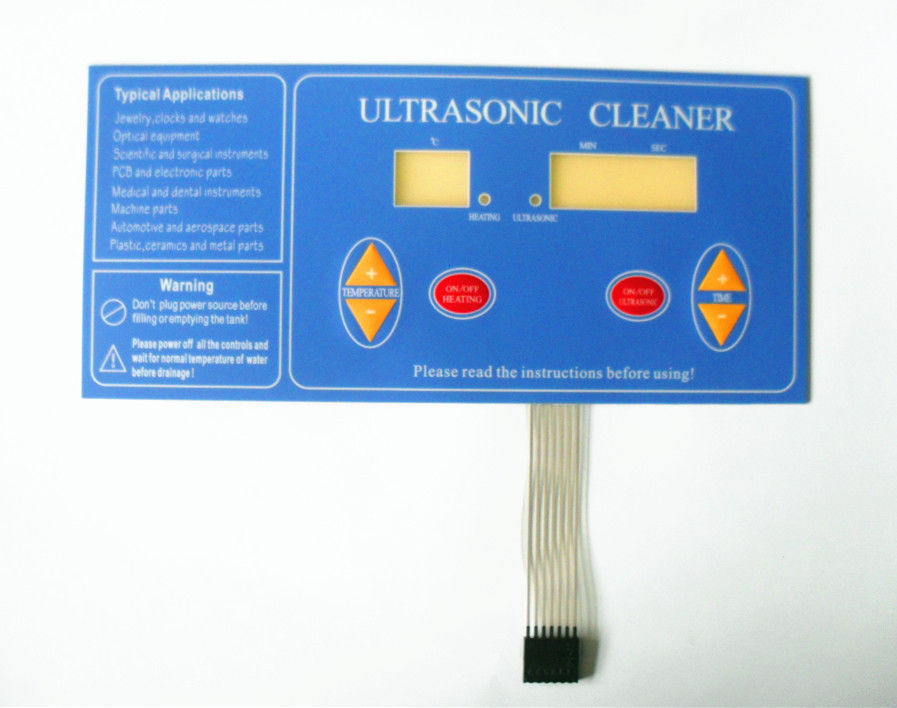

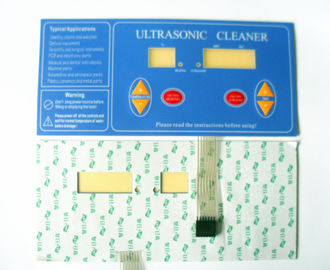

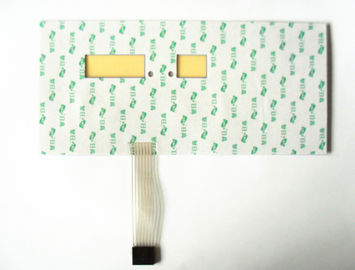

Push Button Flexible Membrane Panel Switch With LED , Thin Film Switch

Push Button Flexible Membrane Panel Switch With LED , Thin Film Switch
Push Button Flexible Membrane Panel Switch With LED , Thin Film Switch

Large Image :  Push Button Flexible Membrane Panel Switch With LED , Thin Film Switch

Product Details:
Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Detailed Product Description
Membrane Switch: Push Button Flexible
High Light:

single membrane switch

,

custom membrane switch



Push Button Flexible Membrane Panel Switch With LED , Thin Film Switch





Quick Detail:





tactile waterproof membrane switch

1  Material:clear PET

2  Feature:metal dome, display window,5pins

3  Adhesive:3M467/468

4 OEM





Tactile Membrane Switch Performance:



Certification

ISO9001:2008, ISO14001:2008& RoHS.

Components:

LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements.







Tactile Membrane Switch advantages:



Appearance

Beautiful, bright in color

Design

Small size, light weight, thin thickness, various types of products can be designed according to customer requirements.

Feature

Abrasion resistant, Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof.

Quality

In-house 100% functionally tested.

Life expectancy

High lifespan, different types of membrane switch is more than 1 million times.

Operation

Easy to operate, intuitive, safe and reliable, Installation and connection convenience.



Electronic characteristics

Circuit rating

35V(DC),100mA,1 W

Contact resistance

10Ω - 500Ω(According the trace length and materials to confirm)

Insulation resistance

>100MΩ 250V(DC)

Contact bounce

≤5ms

Dielectric withstand

250VRms(50 - 60Hz/1 min)

Life expectancy

flat type≥5 million times, tactile type:≥1 million times

Mechanical Properties

Operating pressure

flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)

Switch stroke

flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm

Environmental parameters

Operating Temperature

-20°C - +80°C

Storage temperature

-40°C - +85°C

Humidity

40°C,90%-95%,240 hours





Why to choose Shenzhen boerzhuo membrane switches?



1.     No need to worry about the qualities (We take response if our reason lead failure ).
2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3. We are specialized ,can help to design and make good suggestion .

4. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.

 5. We can accept small quantity order and offer competitive price.

6. Strict quality inspection ,100 %  function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.



A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
