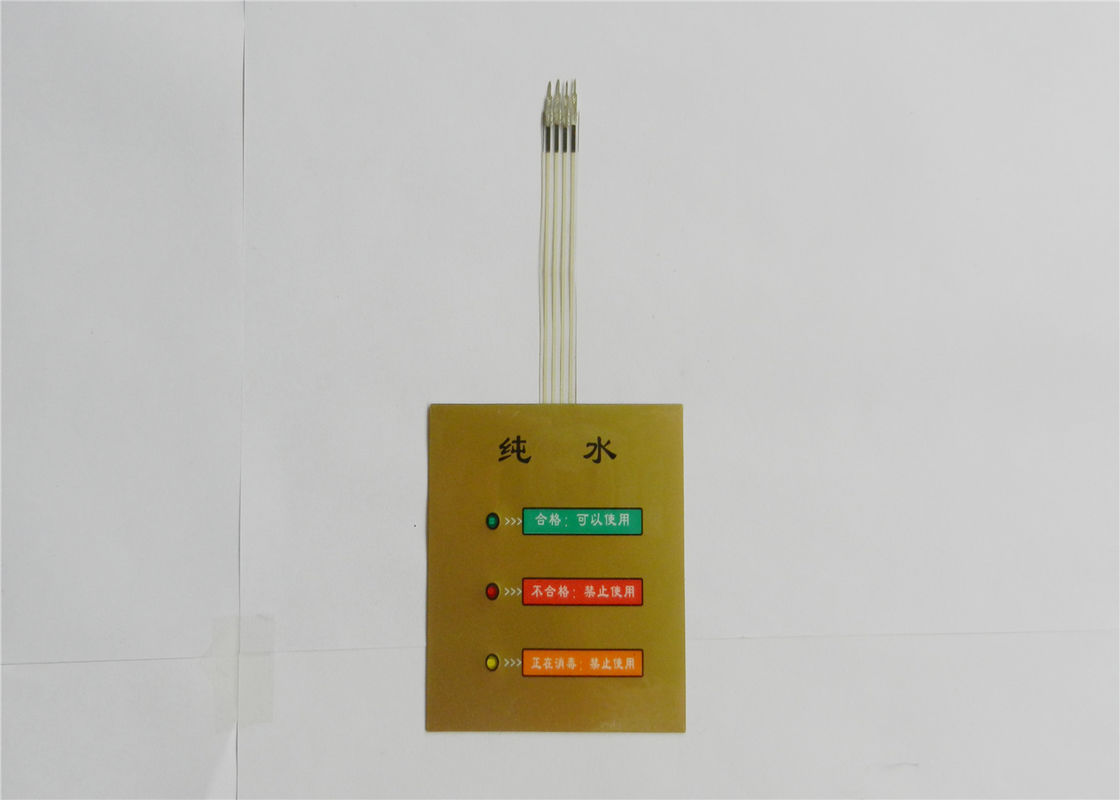

PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing
> Total thickness : 1.12 mm
> Surface : glossy
> Window : glossy
> Graphic overlay material : 0.188 glossy PET
> Circuit material : PET
> Rear adhesive : national adhesive
Why can you choose SHENZHEN BOERZHUO ELCTRONIC CO.;LTD
We are a professional manufacturer of membrane switch in Shenzhen, China.
Our main products: Membrane switch
To be specific, we are a processing factory, so Both OEM and ODM orders are welcome.
Our company has attained certificate of ISO9001:2008, we promises High quality products. Over 200 customers at home and abroad have chosen us.
2. PET/PC overlay
3. 100% QC
4. Short lead time
Custom made(best service,high quality,low price)
Key specifications/special features:
1. Customized specification is available.
2. Beautiful appearance, long life-span, good tactility, abrasion resistant, dustproof, oil resistant, waterproof, etc.
3. High quality printing.
Maximum Circuit Rating: 35V(DC),100mA,1W
Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: < 5ms
Life: Flat: ≥ 5million times
Tactile: ≥ 1 million times
Dura switch: ≥ 10million times
Actuation Force: Flat: 57~284g(2~10oz)
Switch Height: Flat: 0.1~0.5mm
Operation Temperature: -40~+80 Degree Centigrade
Storage Temperature: -40~+80 Degree Centigrade
Humidity: 90%~95%, 240 hours
