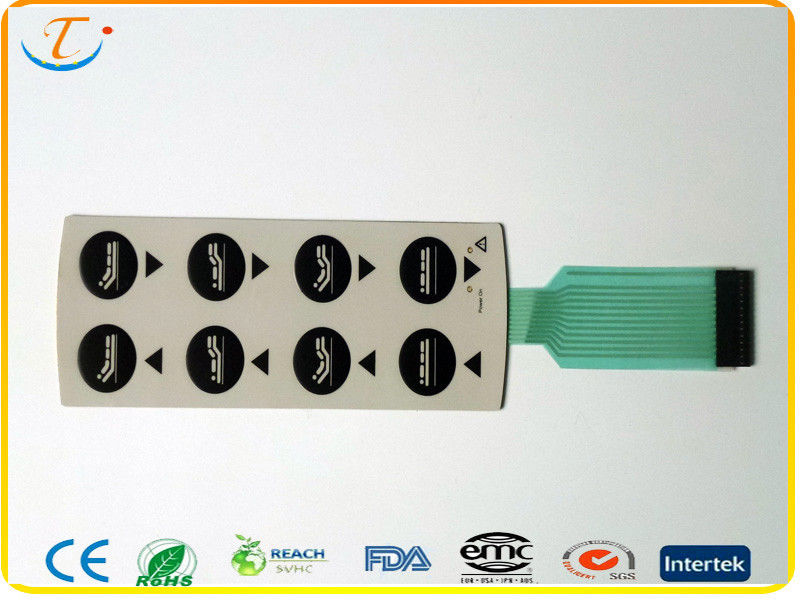

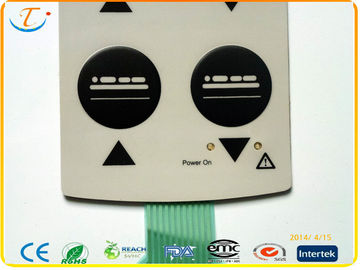

Metal Dome Membrane Switch Keypad Tactile Flexible For Medical Equipment

Metal Dome Membrane Switch Keypad Tactile Flexible For Medical Equipment
Metal Dome Membrane Switch Keypad Tactile Flexible For Medical Equipment Metal Dome Membrane Switch Keypad Tactile Flexible For Medical Equipment

Large Image :  Metal Dome Membrane Switch Keypad Tactile Flexible For Medical Equipment

Product Details:
Place of Origin: dongguan,guangdong,china
Brand Name: Tiantai:flexible membrane switch
Certification: ROHS
Model Number: TTo1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: EXW price /FOB shenzhen port price
Packaging Details: standard export package
Delivery Time: 15 workdays after confirm sample
Payment Terms: T/T,Western union,paypal
Supply Ability: 1000000pcs/year
Detailed Product Description
High Light:

Membrane Switch keypad

,

LED membrane switch

Metal Dome Membrane Switch Keypad Tactile Flexible For Medical Equipment









Description:

1. Overlay Materials: The most commonly used base materials are PC and Autotype PET.
2. Rear Adhesive: 3M 467MP, 3M 468MP, etc.
3. Standard Tolerances: +/-. 010 inch.
4. Matching color: Pantone and RAL color matching system.
5. Tail, pin and circuit layout: Subject to customers detailed requests.







Parameter:





Name Flexible Membrane Switch
Operating Voltage ≤42vdc
Current ≤100ma
Contact resistance 30-100(ω)
Insulation Resistance ≥100mω
Key operation force 280g
Rebound time ≤10(ms)
Substrate voltage ≤1500vdc
Life times 500 000 (times)
Operating Temperature 30℃~70℃







Quotation Request:



The more information that is supplied regarding applications, functional requirements and environmental concerns, the more accurate our quotation will be.3D Drawing design will be better.



  • Switch application
  • Quantities required for prototypes and production
  • Material requirements
  • Graphic overlay material, polycarbonate or polyester
  • Overlay finish requirement
  • Number of colors to be printed on graphic overlay
  • Overall dimensions or prints
  • Embossing requirements
  • Type of termination required and tail length
  • Dome type, if tactile feel is needed
  • Pinout requirements
  • Environmental concerns
  • Back-lighting
  • Other special requirements
