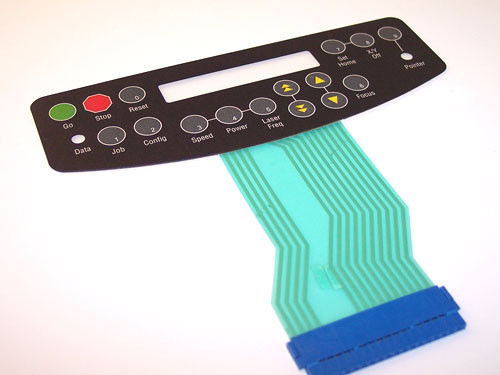

Matt UV Resistant waterproof Membrane Switch

Matt UV Resistant waterproof Membrane Switch
Matt UV Resistant waterproof Membrane Switch

Large Image :  Matt UV Resistant waterproof Membrane Switch

Product Details:
Place of Origin: Zhejiang
Brand Name: Tuo De
Model Number: T
Adhesive: 3M adhesive
Keypad Button Material: Polyester
Color: Any color available
Thickness: 0.8-1.25mm
Application: Telecommunication Equipment
Shape: Die-cut or engrave to any shape
Category: Switches
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: FOB USD 0.5~4.5 / PieceGet Latest Price
Packaging Details: 1.Each piece per polybag, bubble bag. 2.Standard export carton box
Delivery Time: 8Days after sample confirmed
Payment Terms: L/C,T/T,
Supply Ability: 2000 Piece/Pieces per Day
Detailed Product Description

1.Water-proof membrane panel
2.Made of PET/PC
3.Hermetically sealed exit
4.3M adhesive
5.ISO certificated

Detailed Product Description
Notice: we have the capacity to provide you membrane switches with other special requirements, such as shielding, windows/lens coating, embossing, embedded LED, UV glossy/matte/textured and more
Prototypes of membrane switch and keyboards in-3-5 days.

Membrane switches, Membrane panel, membrane overlay, 3M adhesive membrane switch.


AUTOTEX,GE, Bayer, British Emperor PC or PET

Surface finish

Full or selective textured, glossy, Matt surface

Making shape method

Die-cut or engraved

Printing method

Under surface or surface printing

Quality control

In house control with IQC

Tooling cost

Minimal tooling costs

Products Highlight

-Embossed, dome and flat panel options

-Tactile or no-tactile actuation

-Novelty, thin, light, good tactility, abrasion resistant

-Moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion, quakeproof.-

-Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested.

-Customized specification is available and keys can make different shapes.

-matching color: Pantone and RAL
-Certification: RoHs, ISO9001:2000

Membrane switch Description------------

-1.Electronic characteristics

Circuit rating

35V (DC), 100mA, 1W

Contact resistance

10Ω~500Ω (According the trace length and materials)

Insulation resistance

> 100MΩ 250V DC-

Contact bounce

≤ 5ms

Dielectric withstand

250VRms (50~60Hz 1min)

Life expectancy

flat type ≥ 5 million times, tactile type ≥ 1 million times

-2.Mechanical Properties

Actuation force

flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)-

Switch stroke

flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm-

-3.Environmental parameters---

Operating Temperature


Storage temperature



40°C, 90% ~95%, 240 hours

Cross section for types membrane switch

  1. Graphic overlay (Polyester recommended)
  2. Upper circuit (Polyester with printed silver)
  3. Circuit spacer (acrylic adhesive and polyester)
  4. Lower circuit (polyester with printed silver)
  5. Mounting Adhesive ( acrylic)
  6. Tactile Spacer (acrylic adhesive and polyester)
  7. Fully key emboss (recommended with tactile)
  8. Formed dome on upper circuit
  9. Formed dome on graphic

Welcome customers to provide specifications/ drawings/ samples or moulds to us, we would be very pleased to give you our best price, make proofs and arrange production as request. OEM & ODM cooperation also welcomed! You can contact us by sending messages to the web bottom box if you have any need. Thanks and hope we can be one of your partners.
