Keypad Flexible Membrane Switch With Electronic White Board Curcuit

Keypad Flexible Membrane Switch With Electronic White Board Curcuit
Keypad Flexible Membrane Switch With Electronic White Board Curcuit Keypad Flexible Membrane Switch With Electronic White Board Curcuit Keypad Flexible Membrane Switch With Electronic White Board Curcuit

Large Image :  Keypad Flexible Membrane Switch With Electronic White Board Curcuit

Product Details:
Place of Origin: Dong Guan China
Brand Name: HHC
Certification: ISO9001:2008, SGS,Rohs
Model Number: HC-MS-010
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiable
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or according to the customer
Delivery Time: Around 7 business days after deposit received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Operation Temperature: -40℃~70℃ Insulation Resistance: <100MΩ,250V DC
Certificate: SGS , Rohs Feature: Dust-proof , Waterproof
Adhesive: 3M467 & 3M468 Material: PET /PC
High Light:

flexible printed circuit boards

,

flexible printed circuit board

Keypad Tactile Flexible Membrane Switch With Electronic White Board Curcuit


Membrane Switch panel, FPC circuit panel Supplier, film switch panel, FPC circuit Supplier, Membrane Switch Supplier, Membrane Switch manufacturer, Flexible printing Circuit switch, name plate, tactile membrane switch, touch screen panel, Graphic overlay, Membrane cont switch board, LED membrane switch panel, Control board, Membrane nameplate. PC overlay.


rated current 25-100mA,0~30V DC
material PET /PC
Adhesive 3M467,3M468,and no adhesive
Feature moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof
wire lead resistance <1Ω/CM
Insulation resistance <100MΩ,250V DC



Description:
Electronic white board
1) Custom made OEM/ODM
2) Electronic white board curcuit
3) Membrane switch faceplate
4) Withstand millions of cycles
5) perfect exterior
6) metal dome or silicone keypad is also available.



Applications:
Our membrane switches are widely used in :
•Medical Equipment
•Telecommunications apparatus
•Telephone systems
•Household appliances
•Security systems
•Point of sale apparatus




wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree















Specifications:
1 material : PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality



Competitive Advantage:
1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7.Customized specification is available and keys can make different shapes

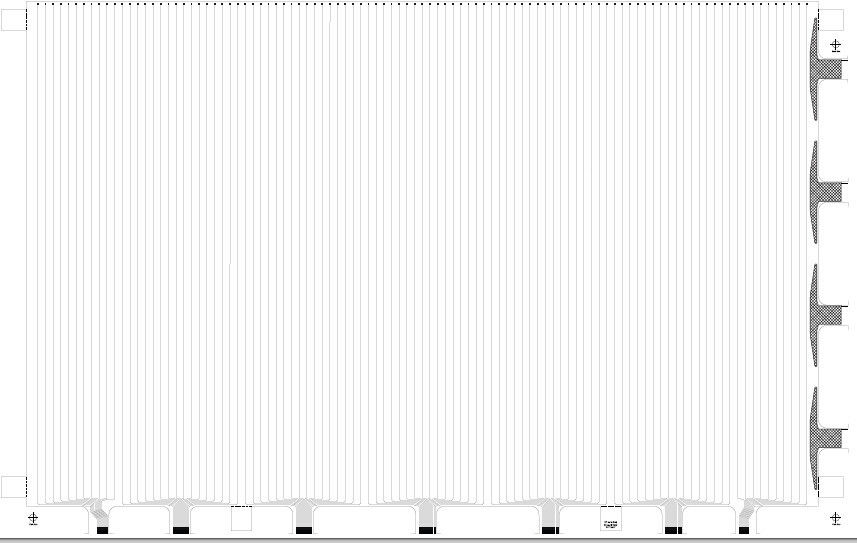

Keypad Flexible Membrane Switch With Electronic White Board Curcuit 0

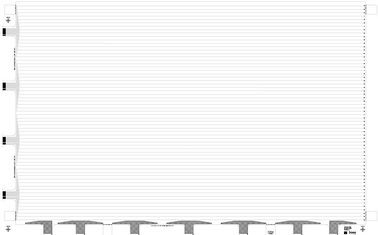

Keypad Flexible Membrane Switch With Electronic White Board Curcuit 1
