HPLC Model LC200 Pump Max pressure 40Mpa / 5800psi , Flow Precision ≤0.075%RSD

HPLC Model LC200 Pump Max pressure 40Mpa / 5800psi , Flow Precision ≤0.075%RSD
HPLC Model LC200 Pump Max pressure 40Mpa / 5800psi , Flow Precision ≤0.075%RSD

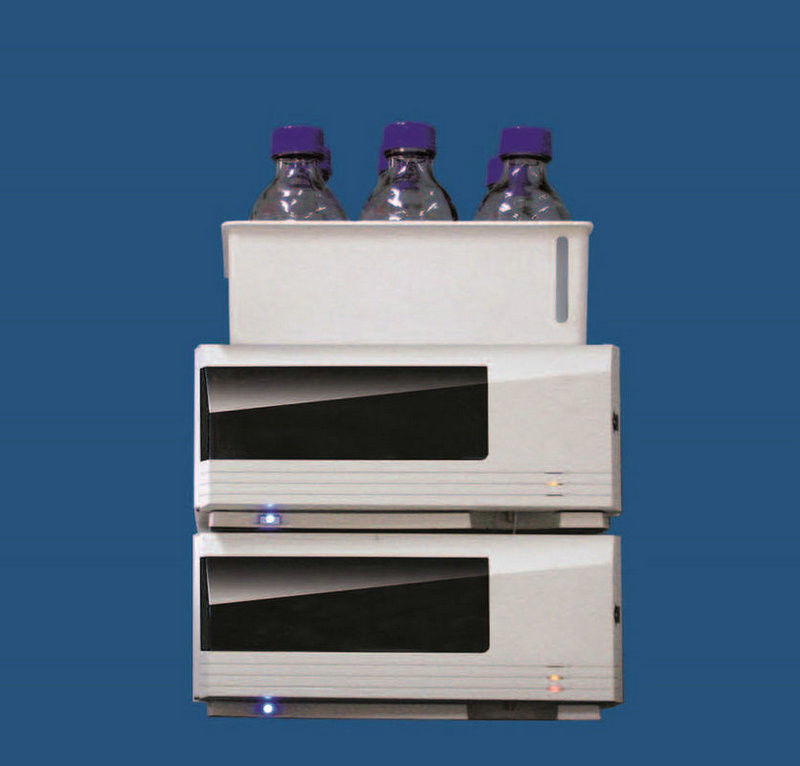

Large Image :  HPLC Model LC200 Pump Max pressure 40Mpa / 5800psi , Flow Precision ≤0.075%RSD

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: LC200
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a quote
Packaging Details: Carton package
Delivery Time: Contact for confirmation
Payment Terms: T/T, L/C
Supply Ability: 400 units per year
Detailed Product Description
High Light:

High Performance Liquid Chromatographic

,

Flame Atomic Absorption Spectrometer





HPLC Model LC200 , Pump Max pressure 40Mpa / 5800psi , Flow Precision ≤0.075%RSD High Performance Liquid Chromatography





Features

  • Accurate flow rate
  • Excellent reliability and stability
  • Full control via powerful LC Win software
  • Modular design enables flexible configurations
  • Automatic data save in the event of accidental power shortage



Applications:


  • Medical and pharmaceuticals
  • Health and epidemic prevention
  • Environmental monitoring
  • Agriculture, forestry, fisheries, animal husbandry
  • Manufacturing
  • Petrochemical
  • Quality control
  • Education and scientific research
  • Water reservation system






Specifications:

LC210 Pump

Type

Serial dual plunger

Flow range

0.001-10.000ml/min, 0.001ml/min increment

Compressive compensation

User defined

Seal wash

Manual

Max pressure

40Mpa/5800psi

Pressure ripple

≤1% (1ml/min, degassed methol)

Flow precision

≤0.075%RSD

Flow accuracy

+1%

Number of solvents and setting range

Isocratic, 0-100%, 0.1 increments

Composition accuracy

≤2%

Power requirements

95-240V 150VA 50Hz

Dimension

392x550x169mm

Weight

14.5kg

Sound pressure level

<70dB



LC220 UV Detector

Lamp source

Deuterium lamp, Tungsten lamp

Wavelength range

190-800nm

Bandwidth

6nm

Wavelength accuracy

+1nm

Wavelength precision

≤0.2nm

Linear range

>104

Noise

+0.75x10-5AU (dry cell, 254nm, response time 1s)

Drift

1x10-4AU/h (dry cell, 24nm, responses time 1s)

Detection limit

≤5x10-9g/ml (naphthalene/methanol)

Flow cell volume

10μl

Pressure limit

10Mpa/1500psi

Responses time

0.1-2s

Operating temperature range

10-40℃

Power requirements

95-240V 150VA 50Hz

Dimension

392x550x169mm

Weight

12kg

Sound pressure level

<70dB



LC230 Auto Sampler

Loop volume (100μl)

1-5000μl programmable (10ml loop optional)

Syringe volume

500μl (2500μl optional)

Sample capacity

2x48 vial tray for 1.5ml vial (optional 12 position 10ml vial tray,

96 well plate formats, 384 well plate formats)

Switching time of injection valve

<100ms

Piercing precision needle

≤0.6mm

Injection cycle time

17s (60s while needle washing)

Injection modes

Full loop, partial loopfill and μl pickup mode

Reproducibility

Full loop < 0.3%

Partial loopfill < 0.5%

Μl pickup < 1%

Carry over

<0.05%

Cooling (optional)

4℃ to ambient-3℃

Power requirements

95-240V 150VA 50Hz

Dimension

300x510x360mm, 300x575x360 with cooling

Weight

19kg; 21kg with cooling

Sound pressure level

<70dB



LC240 Column Oven

Model

LC240 and LC242

LC241 and LC243

Temperature range

Ambient - 100℃, 0.1 increment

Temperature accuracy

+5℃

Temperature stability

≤0.1℃

Cooling (optional)

Minimum to ambient - 15℃

Columns accommodated

3 columns, 15-25cm



LC250 Degasser

Type

LC250 membrane online degasser 2 channel

LC251 membrane online degasser 3 channel

LC252 membrane online degasser 4 channel

Volume

10ml/min



Diode Array Detector 2600

Light source

Deuterium

Measurement range

190-500nm

Detection type

Diode array, 1.25nm dot pitch, 256 diodes

Bandwidth

4-25nm, user selectable

Wavelength accuracy

≤1nm

Wavelength validation

Automatic via internal Holmium Oxide filter

Noise

≤1x10-5AU

Drift

≤5x10-5AU/hr

Linearity

0-1.5AU

Measurement range

0-2.2AU

Spectra

4 spectra can be stored

Integration time range

13-200ms

Time constants

0.1-10.0 second in 1-2-5 steps



ELSD Detector Chromachem

Light source

High intensity Halogen lamp (multicolor)

Detector

Photomultiplier (high sensitivity)

Analogue signal output

0-1V

Detect limit

<10ng glucose (non-column injection)

Heating time

<10min heat up to 150℃

Temperature range

Evaporation chamber: maximum 150℃, increase by 1℃

Nebulizer: maximum 70℃

Autozero

Front panel or external trigger

Nebulizer type

Venture tube, temperature controllable

Gas flow rate

1-2l/min, recommended pressure 1-2bars

Spectra

4 spectra can be stored

Integration time range

13-200ms

Time constants

0.1-10.0 second in 1-2-5 steps



Refractive Index Detector 201H

Refractive index range

1.00-1.75

Detection range

0.25-512μRIU

Linear range

≥600μRIU

Noise

≤2.5nRIU (pure water, response time: 1.5second)

Response time

0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 second

Autozero

Automatic zero

Autozero range

Full range

Deviation adjustable range

10μRIU

Detection cell volume

8μl

Flow rate

Common value 0.2-3.0ml/min, maximum 10ml/min (pure water)

Highest pressure

0.05Mpa

Dead volume

670μl

Temperature control

Off, 30-50℃ (each time 1℃), 77℃ fuse (dual temperature control)



Fluorescence Detector RF20Axs

Light source

Xenon lamp Low pressure Mercury (for wavelength accuracy

 correction)

Wavelength range

200-750nm

Spectral bandwidth

20nm

Wavelength accuracy

+2nm

S/N

Raman peak of water S/N above 2000

Detection cell temperature range

4℃-40℃, 1℃ increment

Detection cell temperature control range

(ambient-10)℃-40℃

Detection cell

Standard detection cell: volume: 12μl,

withstanding pressure: 2Mpa

Half-micro detection cell: volume: 12μl,

withstanding pressure: 2Mpa

Functions

Simultaneous double-wavelength test, wavelength scanning

Safety protection

Leakage sensor

Operation temperature range

4℃-35℃
