GB16196 Earth Leakage Residual Current Circuit Breaker RCCB Electronic 2P / 4P

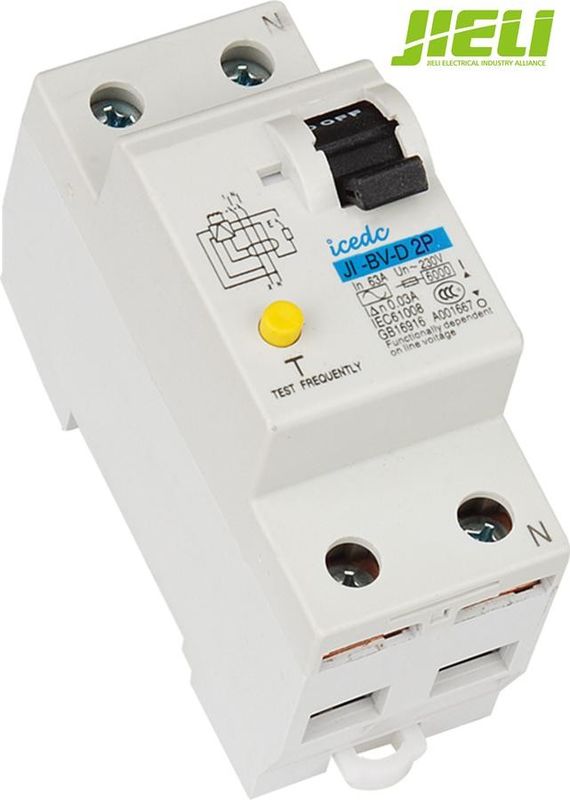

Large Image : GB16196 Earth Leakage Residual Current Circuit Breaker RCCB Electronic 2P / 4P

Product Details:

Place of Origin:	Zhejiang,China(Mainland)
Brand Name:	JIELI
Certification:	CE/ISO9001/IEC60898-1
Model Number:	JL-BV-D

Payment & Shipping Terms:

Minimum Order Quantity:	1200 Piece/Pieces other
Price:	Negotiable
Packaging Details:	Standard export carton or according to your request.
Delivery Time:	Within 20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability:	50000POLES/DAY

Contact Now

Detailed Product Description

Highlight:	elcb circuit breaker

GB16196 Earth Leakage Residual Current Circuit Breaker RCCB Electronic 2P / 4P

Quick Detail:

Place of Origin: Zhejiang China (Mainland)

Brand Name: JIELI OEM/ODM

Model Number: JL-BV-D residual current circuit breaker

Type: Earth Leakage, Electronic or magnetic residual current circuit breaker

Poles Number:2P/4P

Rated current(A):16-63

Rated voltage(V):230/400

Rated residual non-operating current(mA):0.5 ≤I n

Rated residual operating current(mA):30mA,300mA

Color: White

Point: silver

Residual current off-time:≤0.3s

Parts:brass/copper

Description:

JL-BV-D Residual current circuit breaker ID is used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA.

JL-BV-D residual current circuit breaker/rccb/rcd/elcb can be used in TN-S, TT and IT network systems or with other words in all systems where neutral and protective conductor are separated(VDE 0100 Teil 410).

Specifications:

Product name	JL-BV-D
Standard	IEC61008/GB16196
Product Certifications	CE,CB,3C
Product Function	Leakage protection, Isolation function
Rated current(A)	<25 <40 <63
Pole No	1P+N 3P+N
Rated voltage(V)	230V/400V
Rated frequency(Hz)	50/60
Sensitivity (In)	30mA,100mA,300mA
Environment temperature	-25°C-+60°C
Connection type	Tunnel style, Pin style, U style
Biggest wiring ability	35mm2
Action style	AC22
Installation style	35mm standard 35mm guide
Im,Im(A)	500
Inc,Ic(A)	6000
Mechanical life	10000
Protection degree	IP20
