DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole

DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole
DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole

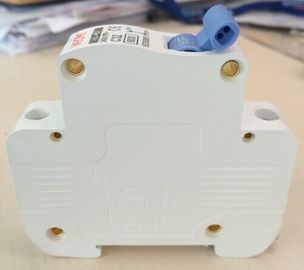

Large Image :  DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole

Product Details:
Place of Origin: China
Brand Name: VECAS
Certification: CE
Model Number: HCB10-63
Features: automatic|high voltage
Application: generator
Color: blue
Electricity Type: AC
product name: micro circuit breaker
type: thermal|tripped
Usage: electric|house
Certificate: CE
Poles Number: 1,2,3,4,6,10,16,20,25,32,40,50,63
Detailed Product Description
High Light:

short circuit breaker

,

overload circuit breaker

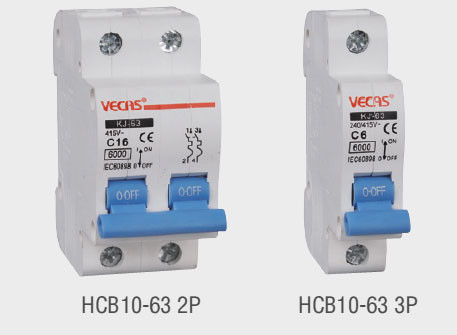

DIN Rail MCB / Mini Circuit Breaker With 6KA Single Pole 2Pole 3Pole 4Pole





Quick Detail:





  • Place of Origin: China
  • Brand Name: VECAS
  • Certificate:CE, CB
  • Pole No.: 1, 2, 3, 4
  • Tripping Curve: B, C
  • Rated Voltage:  AC240/415V
  • Rated Current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
  • Rated Breaking Capacity: 6000A(6KA)





Specifications and Feature :



■  Protection against both overload and short circult
■  Higt breaking capacity
■  Easy mounting onto 35mm DIN rail



Technical Data





Pole No.



Rated voltage

240/415V AC

Rated current (A)

1,2,3,4,6,10,16,20,25,32,40,50,63

Tripping curve

B,C

Rated breaking capacity (Icn)

6000A

Rated frequency

50/60Hz

Energy limiting class

3

Rated impulse withstand voltage

6.2kV

Electro-mechanical endurance

6000

Connection terminal

Pillar terminal with clamp

Connection capacity

Rigid conductor up to 25mm 2

Fastening torque

2.0Nm

Installation

On symmetrical DIN rail 35mm

Panel mounting







Our Service

1. Samples: provide free samples

2. Package: all products will be well packed before shipping

3. Warranty: all products have 2-5 years warranty

4. Delivery: within 30days after received the deposit.

5. Provide OEM and ODM service

6. We can help you with any of your idea to design and put it into production.

7.Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...
