|Customization:||Custom Membrane Switch||Feature:||Dust-proof , Waterproof|
|Adhesive:||3M467 & 3M468 Or As Per Request||Function:||Membrane Keypad Switch|
membrane switch and panel

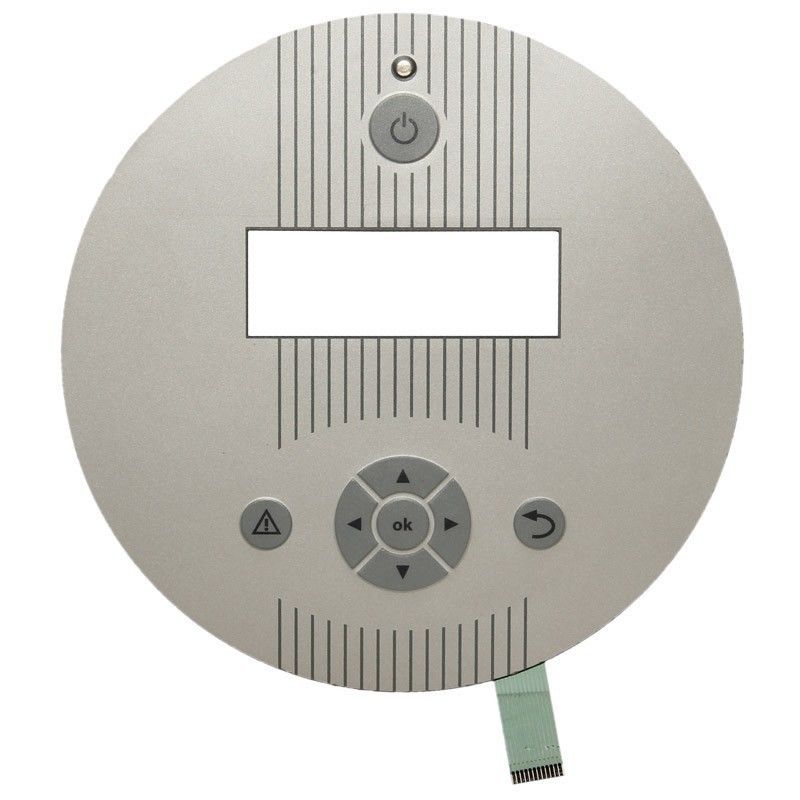

Custom Embossed Membrane Switch Overlay
We have more than ten years experience of design and manufacturing in Membrane Switche and Silicone Rubber Keypads.
Our Products are popular used in electronics, appliances, hospital equipment and military vehicles.
We are very proud that we have been providing our best service to more than 100 stable customers all over the world.
All our circuit, graphic overlays and membrane switches are thoroughly tested and inspected before they leave our factory.
Flexible Printed Circuit
Material: Polyester witch conductive sliver and Carbon
Rear Adhesive: American3M 467MP, 3M 468MP, 3M9472LE, etc
1.100% quality tested
2. Long life expectancy
3. LED inside( Bi-color)
4. FPC - double side circuit
1. Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ At 100V(According the trace length and materials to confirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force: Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Female, male connector, solder pins and heat seal connectors are available
3. Environmental parameters
Operating Temperature: -40 - +80,
Storage temperature: -40 - +85
Humidity: 40, 90% -95%, 240 hours.
Matching color: Pantone color matching system.
Production Capacity: 1000000times
Unit price: Negotiable/
Shipment terms: EXW
Payment terms: T/T
Packing: In carton
|Materials||Textured PC, gloss PC with matte finish, Autotype PET and PVC|
|Thickness||0.5, 0.7, 0.8 and 1.0mm|
|LED windows||Clear or translucent with all colors|
|Embossed keys||Polydome and rim|
|Metal dome||Brand of Nicomatic and Innovan, nickel and gold plated|
|Tail||With mylar and UV|
|Connector||Nicomatic, FCI, Molex and Zif|
|Adhesive||3M 467, 468, 3M9495, 3M7945 and 3M7959|
We have the capacity to provide you membrane switches with other special requirements, such as waterproof, Shielding, Windows/Lens Coating, Embedded LEDs, UV glossy/ matte/ textured, etc.
1. Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switch's design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
