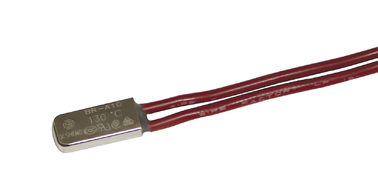

BR-A1D Metal Case Thermal Overload Protector , Single-Phase motor Protector

Large Image : BR-A1D Metal Case Thermal Overload Protector , Single-Phase motor Protector

Product Details:

Place of Origin:	China
Brand Name:	DESHENG
Certification:	UL VDE CE CQC
Model Number:	BR-B2D With enforced case

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	5000pcs per package
Delivery Time:	3-10 days on order date
Payment Terms:	T/T L/C D/P
Supply Ability:	3,000,000pcs/month

Contact Now

Detailed Product Description

Product Name:	Thermal Overload Protector	Contact Capacity:	125Vac/8A, 250Vac/5A, 24Vdc/8A
Cycles Life:	6,000 Cycles	Seal:	Epoxy Resin
Temperature Tolerance:	±5°C	Certifications:	UL VDE CE CQC
Highlight:	thermal overload protectors

Description:

Changsheng BR-B2D series motor protector is built to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, and more. This compact motor protector is the best solution to protect the wide variety of motors under 1 Hp used in industrial and domestic appliances against locked rotor and overload situations.
This motor protector consists of a plastic SPCC housing that holds and protects the inner components against infiltration as well as mechanical deformation. In single–phase motors, the BR-B2D can be mounted directly in the main circuit to serve as an on– or in–winding protector.

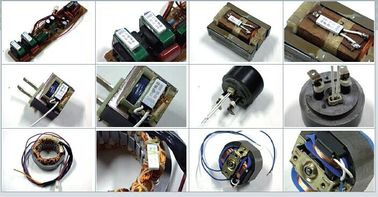

Applications:

Small motors
Coils
Transformers
Washers and dryers
Dishwashers
Automotive accessory motors
PC boards
Battery charges
………and more.

Specifications:

Contact capacity	125Vac/8A, 250Vac/5A, 24Vdc/8A
Cycles life	6,000 cycles
Open temperature	50°C to 150°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	Epoxy resin
Contact resistance	≤50 m
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.
Lead wire pull strength	30 N applied from lead to lead for 5sec. No slip-off or rupture

Competitive Advantage:

1. The strongest Chinese manufacturer, ISO 9001and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc, normally on.

6. Epoxy resin

7. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

BR-B2D with standard plastic case
BR-A1D Metal Case Thermal Overload Protector , Single-Phase motor Protector 0

1. Encloure ( plastic case) 2. Insulator 3. Bimetal disc 4. movable contact
5. Stationary plate 6. Stationarycontact 7. Filling (Epoxy resin) 8. Lead wire
