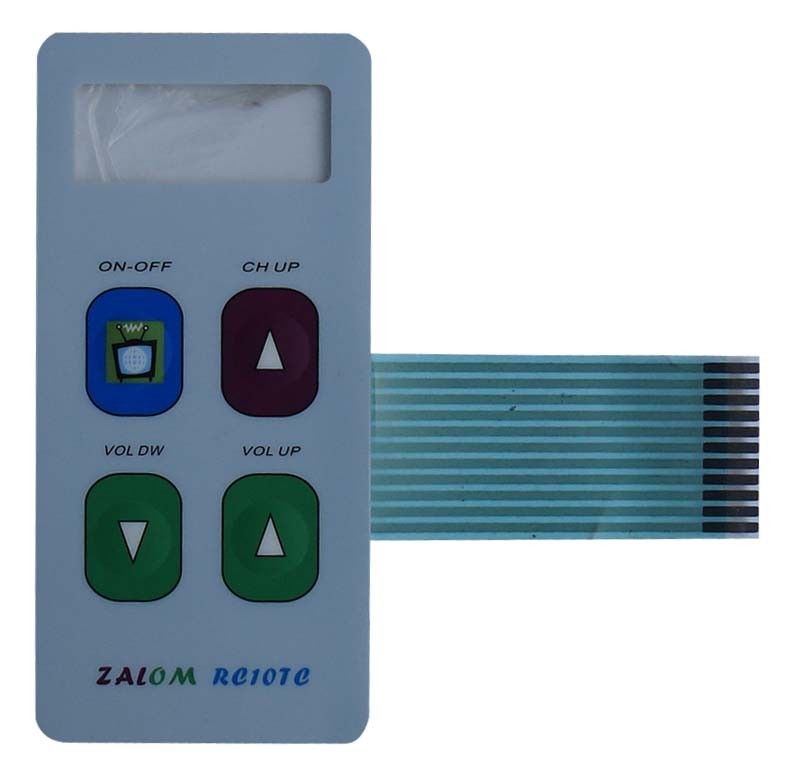

AUTOTEX digital buttons Flat membrane switches

AUTOTEX digital buttons Flat membrane switches
AUTOTEX digital buttons Flat membrane switches

Large Image :  AUTOTEX digital buttons Flat membrane switches

Product Details:
Place of Origin: Zhejiang
Brand Name: Tuo De
Model Number: TD0003
Exit side: Hermetically sealed
Max. Current: 100mA
Max. Voltage: 24V
Thickness: 0.175~1.0mm
Circuit Panel: Polyester with circuits
Laminating adhesive: 3M, Soken, crown
Category: Switches
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Piece/Pieces
Price: FOB USD 1.2~6.5 / PieceGet Latest Price
Packaging Details: Each piece per polybag, standard export carton box
Delivery Time: 2 weeks after order confirmed
Payment Terms: L/C,T/T
Supply Ability: 2000 Piece/Pieces per Day
Detailed Product Description


1.Made of AUTOTEX PET
2.Flexible circuit
3.Unique design
4.Weather resistant
5.3M adhesive

Quick Details

Place of original

Zhejiang, China (Mainland)---

Material

(Chemical, hard coated, UV resistant) Polycarbonate, polyester, -Polyvinylchloride

Brand of Material

AUTOTEX, GE , Bayer, British Emperor

The surface of membrane switch

Selectively Textured, Glossed,- Matt surface

Voltage rating:

2~24V

Contact current

25~100mA

-

-

-

-

-

-

-


Packaging & Delivery

Packaging Detail:

Each piece per poly bag, standard export carton package.

Delivery Detail:

Ship 10 days after order confirmation.

Specifications-

Membrane switch it’s a kind of decorating panel which is made of PET and PC membrane and has some functional characters to indicate.

Membrane panel, membrane overlay, embossed push buttons, 3M adhesive membrane.
1. Customization made
2.Made of polyester (PET) or polycarbonate.
3. Die cut or engraves to any shape

4. Available with a range of surface finish (Full or selective Textured, Glossed, Matt surface

5. Various surface with specialized adhesives: 3M468/467, So ken,crown

6. under surface or surface Screen printing

7. with clear or punched window
8. Strict quality control, with IQC

9. Lowest cost

10. Minimal tooling costs

-

---Membrane-switch, membrane panel, grahpic panel, overlay, 3M adhesive.

-

Products Highlight

*Embossed, dome and flat panel options

*Tactile or no-tactile actuation

*Novelty, thin, light Up to 10 million actuations

*Can be embossed (Key border only is recommended)

*Rebound time: -0.006″ to 0.012″

*Complex circuiting and components

*Application:- Mechnical industry

*matching color: Pantone and RAL
*Certification: RoHs, ISO9001:2000

Cross section for types membrane switch

  1. Graphic overlay (Polyester recommended)
  2. Upper circuit (Polyester with printed silver)
  3. Circuit spacer (acrylic adhesive and polyester)
  4. Lower circuit (polyester with printed silver)
  5. Mounting Adhesive ( acrylic)
  6. Tactile Spacer (acrylic adhesive and polyester)
  7. Fully key emboss (recommended with tactile)
  8. Formed dome on upper circuit
  9. Formed dome on graphic

Our Company not just owning plenty of experiences on international trading and having good reputation on customer service, we promise to provide high quality products with advanced technology and reasonable price. Our experienced R&D engineers have been trained many years in this field. We are very confident to be your strong partner and to meet you high requirements, our goal is to create more value for our customer, and gain the competitive strength in the market.

Membrane switch layers

-

-

-
