Audio Amplifier Thermal Overload Protector Switch High reliability

Large Image : Audio Amplifier Thermal Overload Protector Switch High reliability

Product Details:

Place of Origin:	China
Brand Name:	Wu Yin
Certification:	ISO
Model Number:	JUC-31F

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	thermal heat protector

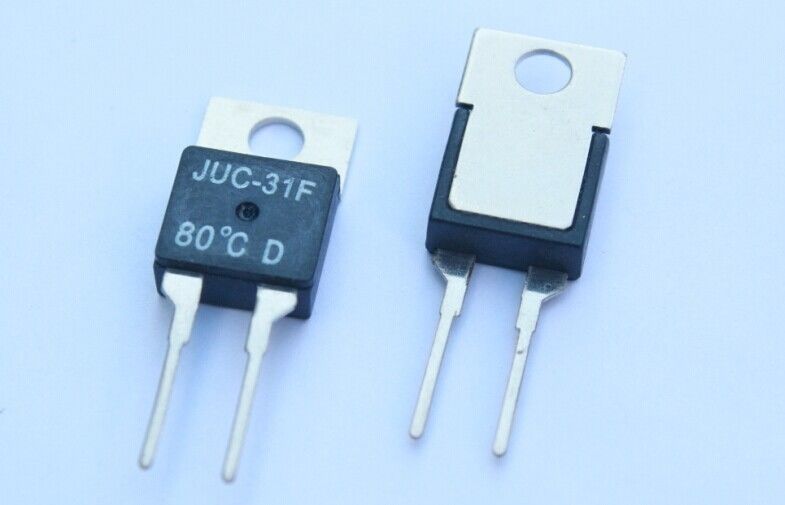

Audio Amplifier Thermal Overload Protector Switch High reliability

Audio Amplifier Thermal Overload Protector Switch JUC-31F is a sudden-jump temperature contact plastic thermostat , using international T0200 / Y220 standard package , with high reliability , sensitive and accurate small size ,Light weight , very easy to install. It is suitable for PCB circuit board , heat sink with, power device installation , etc.

Quick Detail :

T0220 package
Action temperature :-40～130℃
Small size , easy to install
High reliability

Applications :

* Thermal Overload Protector

* Thermal Protectors for Ballasts for Tubular Fluorescent Lamps

* Thermal Motor Protectors for Hermetic and Semi-Hermetic Motor-Compressors

* Automatic Electrical Pressure Sensing Controls, Including Mechanical Requirements

* Temperature Sensing Controls

* Motor Starting Relays

* Energy Regulators

* Electrically Operated Door Locks

* Humidity Sensing Controls

* Electric Actuators

Specifications:

1. Overall Dimensions

2. Technical Data

Contact Load	AC120V1A,DC48V1A,AC220V1A
Contact Type	D(Normally Closed) H(Normally open)
Ambient Temperature	-55℃～+180℃
Over Heat Temperature	250℃(instantaneous)
Circuit Resistance	＜50mΩ
Insulation Resistance	＞100MΩ
Dielectric Strength	＞1500V
Life Time	＞10,000times
Weight	≤1.8g
Tolerance	±2.5℃ ±5℃

3. General Temperature Specifications:

Action Temperature Table
Action Temp.	Reset Temp.	Action Temp.	Reset Temp.
40±4℃	20±8℃	110±5℃	80±10℃
45±4℃	20±8℃	115±5℃	80±10℃
50±4℃	30±8℃	120±5℃	85±10℃
55±4℃	30±8℃	125±5℃	85±10℃
60±5℃	40±10℃	130±5℃	90±10℃
65±5℃	40±10℃
70±5℃	50±10℃
75±5℃	50±10℃
80±5℃	55±10℃
85±5℃	55±10℃
90±5℃	60±10℃
95±5℃	60±10℃
100±5℃	70±10℃
105±5℃	70±10℃

4. Certifications
