Payment & Shipping Terms:
|Product Name:||Thermal Overload Protector||Contact Capacity:||125Vac/8A, 250Vac/5A, 24Vdc/8A|
|Cycles Life:||6,000 Cycles||Seal:||Epoxy Resin|
|Temperature Tolerance:||±5°C||Certifications:||UL,VDE,CE CQC|
thermal overload protectors,
thermal overload protection

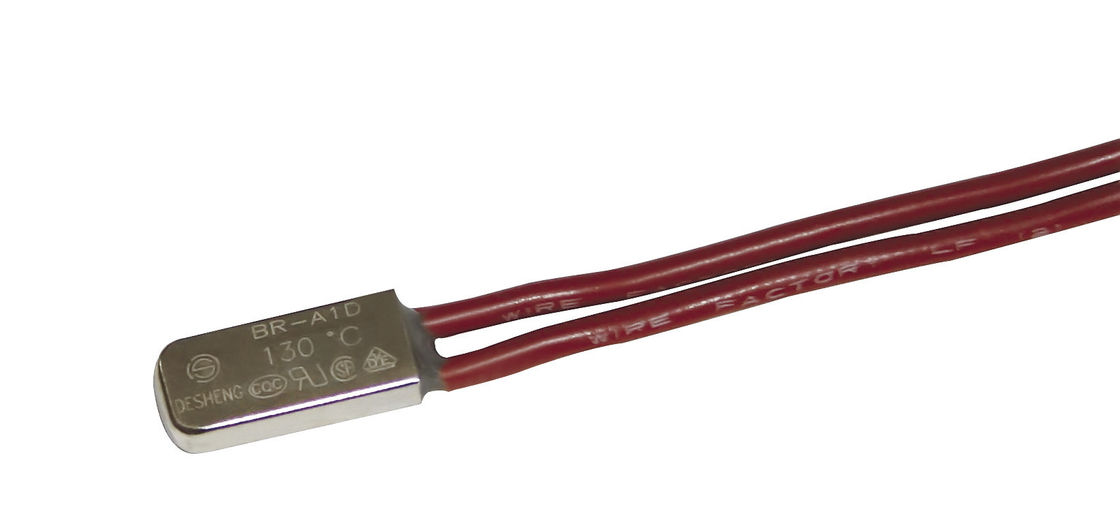

Compact AC / DC Thermal Overload Protector Switch And Motor Thermal Cutout
Changsheng BR-A1D series motor protector is built to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, and more. This compact motor protector is the best solution to protect the wide variety of motors under 1 Hp used in industrial and domestic appliances against locked rotor and overload situations.
This motor protector consists of a metal SPCC housing that holds and protects the inner components against infiltration as well as mechanical deformation. In single–phase motors, the BR-A1D can be mounted directly in the main circuit to serve as an on– or in–winding protector.
125Vac/8A, 250Vac/5A, 24Vdc/8A
50°C to 150°C in increments of 5°C
depending on open temperature
The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.
Lead wire pull strength
30 N applied from lead to lead for 5sec. No slip-off or rupture
1. The strongest Chinese manufacturer, ISO 9001and ISO14001 recognized.
2. Compact, miniature size.
3. UL,VDE,CE CQC Approved.
4. Individually temperature checked on modern, custom-designed equipments from Japan.
5. Snap–action disc, normally on.
6. Epoxy resin
7. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application
BR-A1D with standard metal case
BR-A1D with enforced metal case
Note: wall thickness of the enforced case is 0.5m minimum and it will withstand 30MPa injection pressure (no deformation)
⑦Epoxy resin ⑧Lead wire
