membrane switch overlay

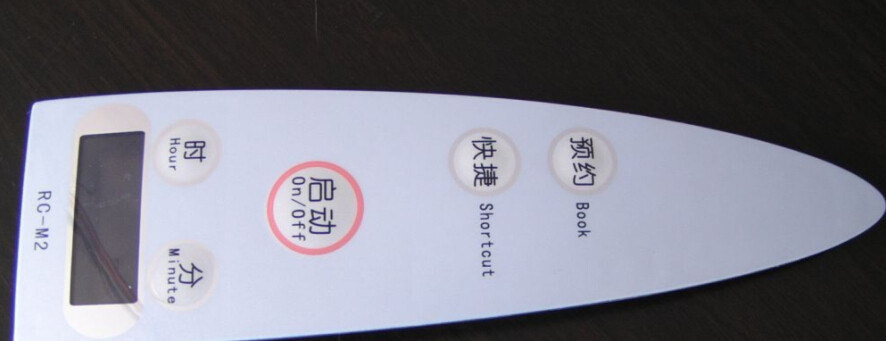

Rim Embossed Graphic Overlay Corrosion Resistance Silk-screen Printed RoHS


Quick Detail:

Descriptions:

Graphic Overlay Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel


The main technical parameters

1.Contact resistance: ＜1Ω /cm
2.Insulation resistance: ＜100MΩ (250V DC)
3.operating voltage: ≤ 50VDC
4.working current: 25- 100mA,0-30V DC
5.reliability, service life:＜1 million times
6.operating temperature: -40 ℃ ~ +70 ℃
7.Operating humidity:when40°C,＜98%RH
8.spring time: ≤ 5ms
9.substrate voltage: 2000V DC
10.Tail flexiblility:any angle within 180 degree

Applications:

Our membrane switches are widely used in :
• Medical Equipment
• Telecommunications apparatus
• Telephone systems
• Household appliances
• Security systems
• Point of sale apparatus
• Industrial controls
• Toys


Competitive Advantage:
Hard wear,
corrosion resistance,
high transmittance,
control feel smooth,
high reliability


Specifications
