Waterproof Silicone Rubber Membrane Switches For Medical Equipment

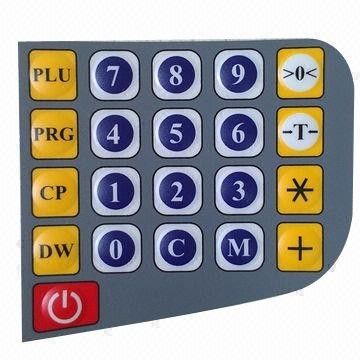

Hình ảnh lớn : Waterproof Silicone Rubber Membrane Switches For Medical Equipment

Thông tin chi tiết sản phẩm:

Place of Origin:	Dong Guan China
Hàng hiệu:	HHC
Chứng nhận:	ISO9001:2008, SGS,Rohs
Model Number:	HC-MSSRK-002

Thanh toán:

Minimum Order Quantity:	100 pieces
Giá bán:	negotiable
Packaging Details:	Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or according to the customer
Delivery Time:	Around 7 business days after deposit received
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100000pieces Per Month

Tiếp xúc

Chi tiết sản phẩm

Material:	Polyester	Application:	Medical Equipment
Overlay color:	Grey	Rear adhesive:	3M467
Làm nổi bật:	Silicone Rubber Membrane Switches

PC Custom Silicone Rubber Membrane Switches With 3m Adhesive

material : PET /PC
adhesive: 3M467 & 3M468 or as per request
High life time :>1million times
Pass:ISO9001:2008 RoHS.SGS
Membrane Switch Overlay
Custom made OEM/ODM
Rasing available
Membrane switch faceplate
Withstand millions of cycles
perfect exterior
metal dome or silicone keypad is also available.

Description:
Membrane Switch Overlay
1) Custom made OEM/ODM
2) Rasing available
3) Membrane switch faceplate
4) Withstand millions of cycles
5)perfect exterior
6)metal dome or silicone keypad is also available.

Applications:
Our membrane switches are widely used in :
•Medical Equipment
•Telecommunications apparatus
•Telephone systems
•Household appliances
•Security systems
•Point of sale apparatus

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Specifications:
1 material : PET /PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality

Competitive Advantage:
1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7.Customized specification is available and keys can make different shapes
