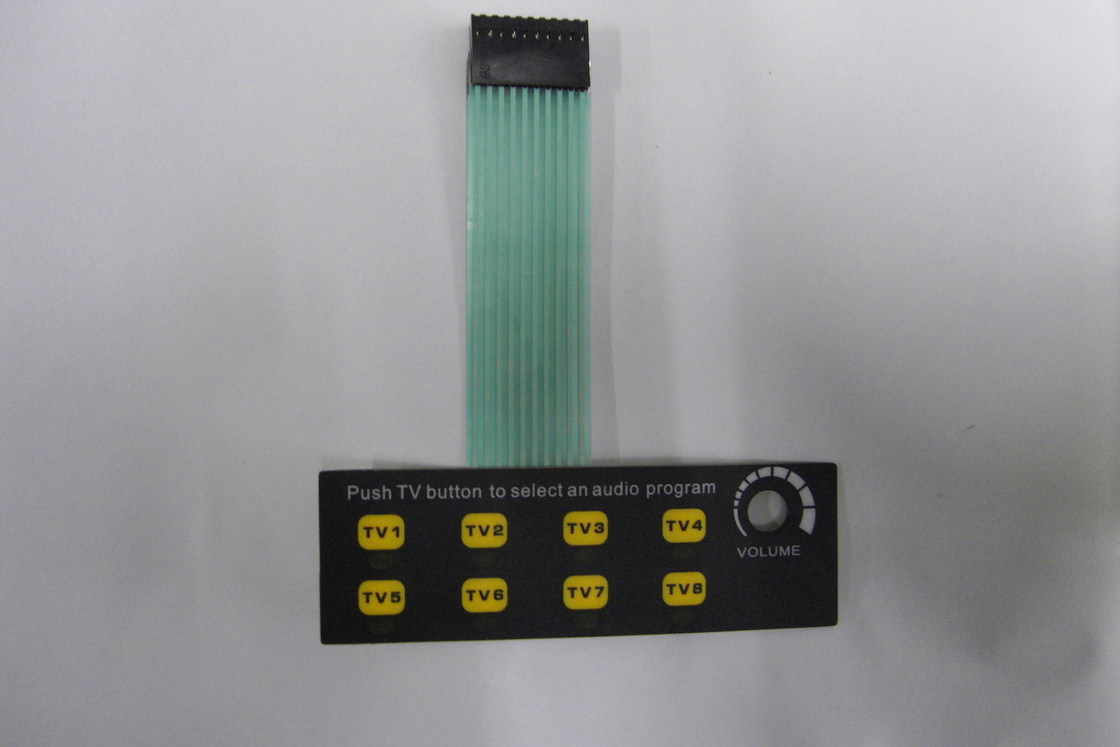

Female 3M467MP Rear Adhesive PCB Single Membrane Switch Keypad PET PC

Hình ảnh lớn : Female 3M467MP Rear Adhesive PCB Single Membrane Switch Keypad PET PC

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Chứng nhận:	ISO9001-2000 Certificate
Port:	Shenzhen

Tiếp xúc

Chi tiết sản phẩm

Làm nổi bật:	embossed membrane switch panel

Female 3M467MP Rear Adhesive PCB Single Membrane Switch Keypad PET PC

membrane switch keypad is made of PET, PC, rear adhesive is 3M467MP, 3M468MP, or ordinary adhesive, color is based on the Pantone,

The membrane switch keypad with high quality and good service ,

Specifications:

Assembled with SMD LED, resistors and connectors

Components are guaranteed without any intermittent problem

In-house 100% functionally tested

Customized designs are welcome

Properties:

Operating voltage: < 35V DC

Operating current: < 100mA

Contact resistance: < 100 Ohms

Open circuit resistance: > 10M Ohms

Operating temperature: -35 to 70 degrees Celsius

Storage temperature: -45 to 90 degrees Celsius

Life expectancy: 500, 000 to 30, 000, 000 cycles

Switch stroke: 0.1 to 0.6mm

Contact bounce: 5 to 30ms

Actuation force tolerance: +/- 20 to 45g

Tactile ratio: FC > 40%

Operating humidity: up to 95% RH

Female, male connector, solder pins and heat seal connectors are available
