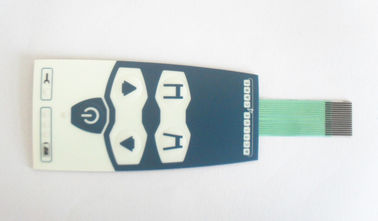

Screen Printing Customized PET Graphic Overlay With Embossed Keypad

Quick Detail:

> Adhesive : 3M 467 3M468 3M9080 3M9448 3M9075

> Button : embossed   flat

> Led Window : with without

> Large Window : with without

Description:

> Overlay button: embossed 0.35 mm

> Window : clear translucent

> Led window : clear translucent

> Tolerance:0.05 mm

> Water proof class : IP 67

> Matching color: Pantone and RAL color matching system.

 Applications:

>  For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .

Specifications

1. PET graphic overlay keypad
2. Second surface pringting
3. Scratch resistance
4. Blue LCD window
Beyond 15 years production

graphic overlay keypad

Overlay Materials: The most commonly used base materials are polyester and polycarbonate.

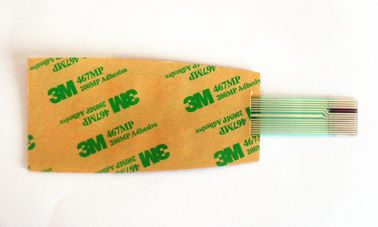

Rear Adhesive: 3M 467MP, 3M 468MP, etc.

Standard Tolerances: +/-.010 inch.

Matching color: Pantone and RAL color matching system.

Environmental

·         Storage Temperature: -40°C (-40°F) to +70°C (158°F).

·         Storage Altitude: Sea level to 35,000 feet.

·         Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be designed to operate in most environments.

·         Humidity: No delamination after 24 hours at 80°C and 90%RH.

A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
