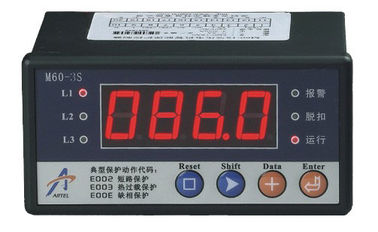

Motor Overload Protection Relay 200A Remote Communication
Profile
M60 protection controller is designed to provide full-scale protections and controls of low-voltage asynchronous motor and increasing safety motor rated below 800A, 50Hz, 380VAC. M60 measures the electrical parameters of motors, operates and controls the motors ,and equipped with the history record management and remote communication function.
M60 products portfolio: standard M60-1S and M60-3S, popular M60-2M and integrated M60-2P. With different infrastructure, installation, and functions, these four types of protector controllers can meet different requirements of customers in low-voltage protection area.
Features
Variety of product portfolio to suit customers' needs
Recording function to record the instant data before and after the faults for fault analysis purpose
Flexible protection functions configuration to ensure the safe and continuous production
Automatic software and hardware inspection to increase the stability and reliability
Remote or local operation on parameters setup, motor start, stop, and reset
Detection on the motor start status automatically to avoid malfunction
Configured with large size LCD panel for on-site operation (optional)
Technical Specification of M60-3S
Input (M60-3S)
Input Current: 1A, 5A, 6.3A, 25A, 50A, 100A, 160A, 200A, 250A
Remote digital signal input: 1 channel (dry contact)
Output (M60-3S)
RS-485 output: 1 channel
Analog output: M60-3S, 2 channels (4-20mA or 0-5V)
Relay output: 2 channels (dry contact)
Contact capacity of control output relay: 10A/250VAC
Contact capacity of alarm output relay: 10A/250VAC
Measurement Record (M60-3S)
Accuracy: I, class 0.5
Accumulated operating time on record (Max.): 9999days
Size & Weight: (M60-3S)
Installation: Panel mounting
Dimensional size: 96mmX48mmX76mm
Installation size: 94mmX46mm
Weight: 450g
Environment:
Auxiliary power supply: 85~265VAC/DC
Total power consumption: ＜3VA(M60-3S )
Operation temperature: -20℃ ~ +60℃
Storage temperature: -40℃ ~ +85℃
Operation humidity: ＜90%RH
Storage humidity: ＜95%RH
Protection Function:
|
Function |
Status |
Item |
Content |
M60-1S |
M60-2S |
M60-2M |
M60-2P |
|
Overtime start protection |
Programmable |
Allowed startup time |
0-80s |
Yes |
Yes |
Yes |
Yes |
|
Protection method |
2 |
||||||
|
Short circuit protection |
Programmable |
Fault setting range |
4-12le |
Yes |
Yes |
Yes |
Yes |
|
Execution delay time |
0.1-0.5s |
||||||
|
Protection method |
0, 2 |
||||||
|
Locked rotor protection |
Programmable |
Fault setting range |
200-950%le |
Yes |
Yes |
Yes |
Yes |
|
Warning setting range |
150-255%le |
||||||
|
Execution delay time |
0.1-25.5s |
||||||
|
Protection method |
0, 1, 2, 4 |
||||||
|
Underload protection |
Programmable |
Setting range |
20-95%le |
Yes |
Yes |
Yes |
Yes |
|
Execution delay time |
0.1-60s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Overload protection |
Programmable |
Setting range |
105-150%le |
Yes |
Yes |
Yes |
Yes |
|
Execution delay time |
0.1-250s |
||||||
|
Protection method |
0, 1, 2, 3, 4 |
||||||
|
Thermal by overload |
Must |
Setting range |
1-105%θb |
Yes |
Yes |
Yes |
Yes |
|
Protection method |
4 |
||||||
|
tE time protection (Increased Safty Motor) |
Programmable |
tE time |
1.0-15s |
Yes |
Yes |
Yes |
Yes |
|
Protection method |
4 |
||||||
|
Unbalance protection (phase failure) |
Programmable |
Setting range |
10%-60% |
Yes |
Yes |
Yes |
Yes |
|
Execution delay time |
0.1-30s |
||||||
|
Protection method |
0, 2, 4 |
||||||
|
Over power protection |
Programmable |
Setting range |
101-120%Pe |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-200s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Under power protection |
Programmable |
Setting range |
30-80%Pe |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-200s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Over power factor protection |
Programmable |
Setting range |
0.01-1.00 |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-25.5s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Under power factor protection |
Programmable |
Setting range |
0.01-1.00 |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-25.5s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Phase reversal protection |
Porgrammable |
Execution delay time |
0.1-25.5s |
|
|
Yes |
Yes |
|
Protection method |
0, 2 |
||||||
|
Under voltage protection |
Programmable |
Setting range |
45-95%Ue |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-200s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Over voltage protection |
Programmable |
Setting range |
101-120%Ue |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-200s |
||||||
|
Protection method |
0, 1, 2, 3 |
||||||
|
Leakage Current protection |
Programmable |
Setting range |
10-500mA |
|
|
Yes |
Yes |
|
Execution delay time |
0.1-5s |
||||||
|
Protection method |
0, 1, 2 |
||||||
|
Overheat protection |
Programmable |
Execution delay time |
0.5s |
|
|
|
Yes |
|
Protection method |
0, 2 |
||||||
|
Interlock protection |
Programmable |
Execution delay time |
0.1-60s |
Yes |
Yes |
Yes |
Yes |
|
Protection method |
2 |
||||||
|
Connection to ground protction |
Programmable |
Setting range |
10-100%Ie |
Yes |
Yes |
Yes |
Yes |
|
Execution delay time |
0.1-5s |
||||||
|
Protection method |
0, 2 |
|
|
M60-1S |
M60-3S |
M60-2M |
M60-2P |
|
Control function |
||||
|
Direct start |
|
|
|
|
|
Reversing start |
|
|
|
|
|
Y-△Start |
|
|
|
|
|
Lower Voltage start |
|
|
|
|
|
Restart motors caused by Voltage fluctuation |
|
|
|
|
|
Emergency fault output |
|
|
|
|
|
Local/remote command of start, stop |
|
|
|
|
|
Measurement function |
||||
|
Operating Current |
|
|
|
|
|
Unbalanced Current ratio |
|
|
|
|
|
Voltage, frequency, power, power factor,leakage current |
|
|
|
|
|
No. of contact executions |
|
|
|
|
|
Status of contacts |
|
|
|
|
|
Record Function |
||||
|
Latest 10 start/stop record |
|
|
Clock |
Clock |
|
Latest 10 alarm record |
No clock |
No clock |
Clock |
Clock |
|
Latest 10 trip record |
No clock |
No clock |
Clock |
Clock |
|
Latest 10 restart record caused by Voltage fluctuation |
|
|
Clock |
Clock |
|
Max. and min. parameters records in the protection execution |
|
|
|
|
|
Accumulated operating time of motor |
|
|
|
|
|
Communication Function |
||||
|
RS-485 com. Port |
|
|
|
|
|
Modbus protocol |
|
|
|
|
|
Profibus protocol |
|
|
|
|
Remark:
M60-3S performs the same function as M60-1S, except that M60-3S has built-in CT, M60-1S has exterior
CT with 5A input.
