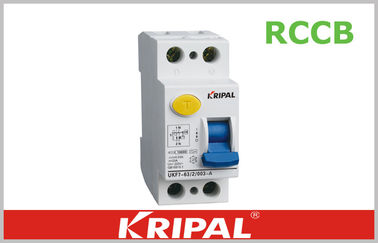

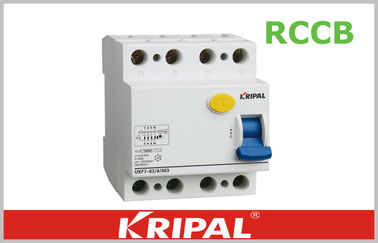

Residual Current Circuit Breaker RCCB

Residual Current Circuit Breaker RCCB
Residual Current Circuit Breaker RCCB Residual Current Circuit Breaker RCCB

Large Image :  Residual Current Circuit Breaker RCCB

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKF7
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Detailed Product Description
Poles Available: 2P, 4P Ampere: 16A 25A 40A 63A
Residual Protection: Yes Type: Mini Circuit Breaker
Leakage Current: 10 30 100 300 500mA Standard: IEC1008 EN61008
High Light:

Micro Circuit Breaker

,

Small Circuit Breaker



Residual Current Circuit Breaker Mini RCCB





 Application



UKF7 series Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits. And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.





Product's advantage



1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;


2.Our products have an excellent ratio between price and quality, you can possess them by competitive price and high quality;


3.The fast and flexible production form aim at the customer require;


4.The deliveries exactly in accordance with customer orders.


5.The fast transportation.


6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.





Techinical data:


A. Conform to standard: GB16916.1
B. Rated voltage (Ue): 230V/400V; 50/60Hz
C. Rated current (A): 16, 25, 40, 63 A (2 poles and 4poles)
D. Rated leakage current: 10, 30, 100, 300, 500Ma
E. Electric life: ≥ 4000 times (on-off)
F. Mechanical life: ≥ 2000 times (on-off)
G. Case protection grade: IP40 after installing




Specifications:



Product name

UKF7

Standard

IEC61008

Product Certificate

CE,

Product Function

Leakage Protection Isolation

Rated Current(A)

16, 25, 40, 63

Pole No.

1P+N, 3P+N

Rated Voltage(V)

230/400V

Rated Frequency(Hz)

50/60

Sensitivity(ln)

30mA, 100Ma,300mA,500mA

Environment Temperature

-25°C- +55°C

Installation Type

Standard 35mm Guide

Connection Type

Tunnel Type

Biggest Wiring Ability

25mm2

Action style

AC

Mechanical Life

20000

Protection Degree

IP20




Mechanical parameter

A. Installation mode: At the DIN rail of standard IEC
B. Terminal wiring capability: Conductor 1-25 mm
C. Width of shell: 2 poles 36mm; 4 poles 72 mm




Main characteristic

A. Various current specifications of leakage action ca easily ensure selective protection.
B. Inaccurate action resulting form the switch operation of electronic equipment can be avoided
C. Unless specified otherwise, the width of two-poles switch is two modules, four-poles(3P+N) is four modules





Installation:



Contact Position indicator

Yes

Protection degree

IP20

Reference temperature for setting of thermal element

30 °c

ambient temperature(with daily average<=35°c)

-5~4°c

Storage temperature

-25...+70 °c

Terminal connection Type

Cable/U-type busbar/Pin-type busbar

Mounting

 35mm DIN rail

Connection

From top and bottom





Dimension:



Residual Current Circuit Breaker RCCB 0







Further information:



1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.



2. There is just one level of quality as A in KRIPAL and we are aim to provide the excellent articles to our clients and help them gain more market shares.



3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.
