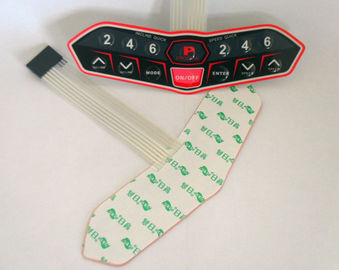

EL / PVC Backlit Push Button Membrane Switch With 3m Adhesive For Decoration

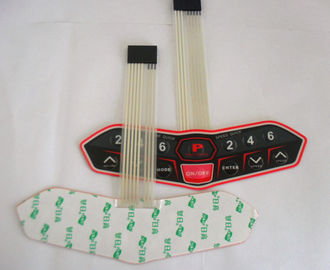

EL / PVC Backlit Push Button Membrane Switch With 3m Adhesive For Decoration

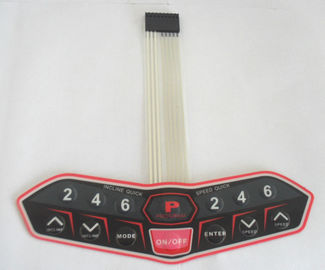

EL / PVC Backlit Push Button Membrane Switch With 3m Adhesive For Decoration

Large Image :  EL / PVC Backlit Push Button Membrane Switch With 3m Adhesive For Decoration

Product Details:
Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Detailed Product Description
High Light:

single membrane switch

,

custom membrane switch



EL / PVC Backlit Push Button Membrane Switch With 3m Adhesive For Decoration





Quick Detail:



> Total thickness : 1.0 mm

> First layer : DF F150

>  Second layer : adhesive DT 6100

> Third layer : metal dome protector mylar 0.1 mm

> Forth layer : FPC cooper foiled circuit 0.125 mm

> Fifth layer : adhesive 3M467

> Led color : green,red ,yellow and white single color

> Pitch : 1.0 mm

> Pin : 11 pin

> Push force : 280 g

> Main electronic compents : LED , metal dome

> Operating condition : 40°c,90%~95%,for 240 hours

> Life span : 1000000 times





Description:



> Surface :Matte

> Overlay button: embossed 0.35 mm

> Top circuit: Φ 8 mm metal dome

> Bottom circuit : flat

> Window : no

> Led window : no color coated translucent

> Water proof class : IP 67

> Connector : without

> Matching color: Pantone and RAL color matching system.





 Applications:



1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .


C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on



3. Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome







Specifications



1. Electrical



Maximum Circuit Rating: 35V(DC),100mA,1W

35V DC,100mA,1W



Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)

10Ω~500Ω



Insulation Resistance: 100MΩ 100V

100MΩ at 100V DC



Dielectric: 250 Vrms (50~60Hz 1min)

250V Rms(50-60Hz 1min)



Contact Bounce: < 5ms

5ms or less



Life:   Flat: ≥ 5million times



           Tactile: ≥ 1 million times

            Duraswitch: ≥ 10million times

Flat type 60g~300g(2~10OZ)



Tactile type 150g~400g(6~14OZ)





2. Mechanical

Flat type 0.1~0.5mm



Tactile type 0.6~1.5mm



Actuation Force: Flat: 57~284g(2~10oz)

                             Tactile: 170~397g(6~14oz)

Flat type Five million closures or more Tactile type one million closures or more




Switch Height:  Flat: 0.1~0.5mm



                            Tactile: 0.6~1.5mm

-40°c~+80°c







Why to choose Shenzhen boerzhuo membrane switches?



1.     No need to worry about the qualities (We take response if our reason lead failure ).
2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3. We are specialized ,can help to design and make good suggestion .

4.  Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.



A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
