Waterproof Stainless Steel Keyboard

Waterproof Stainless Steel Keyboard
Waterproof Stainless Steel Keyboard

Large Image :  Waterproof Stainless Steel Keyboard

Product Details:
Place of Origin: China
Brand Name: DPK
Certification: CE,ROHS, FCC
Model Number: DPK-5130
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard overseas box
Delivery Time: 5-10 days
Payment Terms: FOB and T/T
Supply Ability: 5, 000, 0PCS/Month
Detailed Product Description
High Light:

Industrial Computer Keyboard


dust-proof keyboard

Waterproof Stainless Steel Keyboard

Quick detail
1) 12 keys numeric keypad
2) DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win 7, Linux, Unix, Mac OSX
3) Standard PC/AT keyboard interface.
4) Communication interface: PS2, or USB available


No. Item Specification
1 Model No.DPK-5130



2 Description

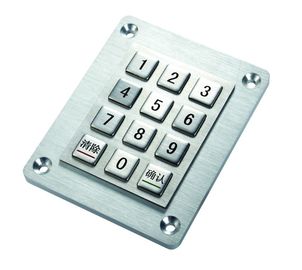

12 Keys Vandal proof IP65 level Stainless Steel Compact Format Numeric keypad with electronics controller protected by stainless steel housing, metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm, with top stainless steel panel mounting.



3 Main Feature
Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.
With firm tactile key feel, short travel switches, with unique double over-travel protection.
Waterproof/dirt-proof execution according to degree of protection IP65/IP54, waterproof and dirt proof encapsulation with unique membrane.
Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win 7, Linux, Unix, Mac OSX



4 Communication Parameter
Standard PC/AT keyboard interface.
12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,Enter, Cancel, 4 x 3 scanning code. Any keys can be re-defined per customers’ requirements.

5 Mechanical  Data

Actuation Force: 1.2N +/-0.1N (pressure point).
Key Travel: 0.45mm.
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel.
Actuator/keys materials: stainless steel.
Dimensions: See engineering drawing
G.W. 1.0KGs



6 Electrical  Data
Switching material: Gold-on-Gold.
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.
Electrical lifetime: > 5 years.
Communication interface: PS2, or USB available.



7 Environmental Adaptability
Operating temperature:-20°C to +60°C.
Storage temperature:-30°C to +70°C.
Operating RH: 30~90%.
Atmospheric pressure: 60~106Kpa.
8 Reliability RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations .
MTBF >20000h.
MTTR <30min.


 Waterproof Stainless Steel Keyboard 0


Waterproof Stainless Steel Keyboard 1
