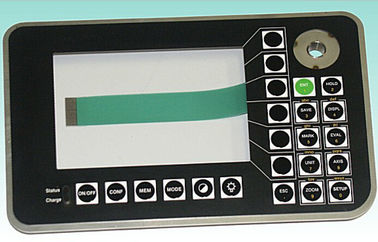

Waterproof PCB Membrane Switch With 3m Adhesive For Electronic Reading Machine

Certification
China Shenzhen City Breaker Co., Ltd. certification
China Shenzhen City Breaker Co., Ltd. certification
Excellent quality and fast delivery.

—— Victor

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I'm Online Chat Now

Waterproof PCB Membrane Switch With 3m Adhesive For Electronic Reading Machine

Waterproof PCB Membrane Switch With 3m Adhesive For Electronic Reading Machine
Waterproof PCB Membrane Switch With 3m Adhesive For Electronic Reading Machine

Large Image :  Waterproof PCB Membrane Switch With 3m Adhesive For Electronic Reading Machine

Product Details:
Place of Origin: China
Brand Name: TKM MS
Certification: ISO9001:2008, SGS,Rohs
Model Number: TKM--MS--108
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C, Western Union
Supply Ability: 100000Pieces per month
Detailed Product Description
Material: V200 Overlay Color: Black
Circuit: Internal Circuit LCD Window: Clear
High Light:

Push Button membrane switch

,

membrane keypad switch

Waterproof PCB Membrane Switch With 3m Adhesive For Electronic Reading Machine



Quick Detail:



Type

PCB

Application

Electronic Products

Color

blue

Feature

  • Energy-efficient & Low power

Machine Stiffness

Rigid

Lays



1-26

Material

PET /PC

I nsulation Material

Organic resin

I nsulation layer thichness

General

Antiflaming Speciality

VO

Processing Technic

Electrolytic foil

Reinforcing material

Glass fiber

Insulating Resin

Phenolic

Export Markets

Global





Description:



1. Copper foil substrate (Copper Film)
Copper foil: basically divided into two kinds of electrolytic copper and rolled copper common thickness 1oz 1/2oz and 1/3 oz
Substrate film: a common thickness of the 1mil with 1/2mil two kinds.
Glue (adhesive): thickness according to customer requirements.



2. Cover film protection film (Cover Film)
Cover film protection film: surface insulation. The common thickness 1mil with 1/2mil.
Glue (adhesive): thickness according to customer requirements.
Adhesive buildup of foreign matter before pressing the shape from the paper: avoid; easy job.



3. Stiffener (PI Stiffener Film)
Stiffener: reinforcing the mechanical strength of the FPC, to facilitate the surface mounting job. Common thickness 3mil to 9mil.
Shape from the paper: to avoid foreign matter adhesive buildup Crimping before the.



4. EMI: electromagnetic shielding film, the protection circuit board line without interference from the outside world (a strong electromagnetic District or susceptible to interference zone).




Applications:


1. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.


2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen


3. CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around


4. The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.




5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc





Specifications



As per request OEM/OEM



Material:pi

1 mil

Cu:

1 oz

PI:

1 mil

Surface treatment:

pure-tin plating

Minimum hole dimension:

0.3mm

Minimum linear width:

0.08mm

Minimum linear distance:

0.08mm

External tolerance:

+/-0.05mm

Welding resistance:

280 more than 10 seconds

Peeling Strength:

1.2kg/cm2

Heat resistance:

-200 to +300 degrees C

Surface resistivity:

1.0 x 1011

Bandability:

meet IPC standard

Chemical resistance:

meet IPC standard



Contact Details
Shenzhen City Breaker Co., Ltd.

Contact Person: Mr. fov

Tel: 18810166789

Fax: 86-189-4289-0330

Send your inquiry directly to us (0 / 3000)
