| Product Name: | Motor Protection Circuit Breaker | Standard: | SAEJ1625;ABYCE-11;CE;SAE;J1171 |
|---|---|---|---|
| Materials: | Black UL Rate Thermoplastic Body | Torque Rating: | 24in-lb(2.7Nm) Max |
| Terminal: | #10-32 Thread And Quick-connector Available | Resettable Overload Capacity: | 10 Times Rated Current |
| Interrupt Capacity: | 125Vac×1000A, 250Vac×200A,50Vdc×200A | Tripping Current Range: | 3-50A |
| Voltage: | 125-250Vac, 6-24Vdc | Dielectric Strength: | 1500V 1min |
| High Light: | marine 50 amp circuit breaker,motor thermal protector |
||

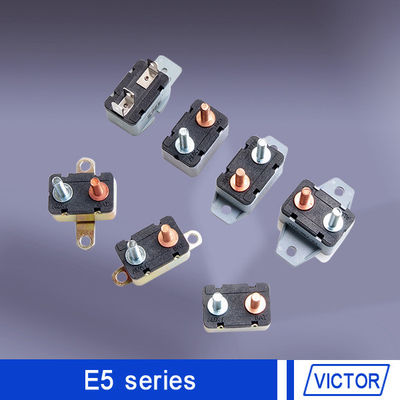

Black UL Rate Thermoplastic Body Motor Protection Circuit Breaker For Battery Changer Protect
Specifications:
| Circuit Breaker Specifications | |
| Overcurrent circuit breaker is the use of bimetal structures, when the electric vehicle the circuit overload, can achieve rapid power off protection function. | |
| Rating: | T1: 5-50A, 14Vdc T2&T3: 5-50A, 28Vdc |
| Interrupt Rating: | 2.5KA @ 12 Vdc for T1/T1-28Vdc sealed& T3 (branch circuit protection) |
| Operating Tempeature rating: | -40℉(-40℃) to 185℉(85℃) |
| Stortage Temperature rating: | -40℉(-40℃) to 260℉(125℃) |
| Materials: | BlackUL-Rate thermoplastic body (thermo set for T2’s body and botton); Cover is gray thermoplastic or steel T1: Gold ; T2: Silver |
| Marking: | Custom marking available; consult factory for option |
| Terminal: | #10-32 thread and quick-contector available |
| Torque rating: | 24in-lb (2.7Nm) max |
| Mounting torque rating: | Plastic cover: 15in-lb (1.7Nm) Metal cover: 30in-lb (3.4 Nm) |
| Ingress Protection rating: | IP 66 on plastic cover (except for terminal) |
| Compliance: | SAE J553 ; SAE J1171 Ignition protection (consult factory for ignition protection rating) |
| Ⅰ Type | 1: Type 1: Auto reset 2: Type 2: Modified reset (Metal cover only by silver color) 3: Type 3: Manual reset (Plastic cover only) |
| Ⅱ Case | 1: Metal without mount 2: Metal with horizontal mounting bracket 3. Metal with parallel mounting bracket 4. Metal or plastic with single parallel mount 6. Plastic without mount 7. Plastic with horizontal mounting bracket 8. Plastic with parallel mounting bracket 9. Metal or Plastic with single horizontal mount |
| Ⅲ Rating | 5-50: 5-50A |
| Ⅳ Voltage | 1: 125Vac 2: 250Vac 3: 14Vdc 4: 28Vdc |
| Ⅴ Terminal | A, B, C, D, E, H, J, K, L Stud: 10-32” (max: 50A) Quick connector: 0.25” (max: 30A) |
| Ⅵ Mtg Hole | 5: 0.196 dia. 6: 0.237 dia. 7: 0.265 dia. |
| ╳ Customer Special request code (a, b, c, d, e) | PVC coated with 10” (254mm) wire loop/ colored coated wire a: 10A, 16 AWG (green) b. 15A, 16 AWG ( yellow) c. 20A, 14 AWG (black) d. 25A, 14 AWG (white) e. 30A, 12 AWG (red) |
1 Circuit breaker can do is protect the circuit from a high current short circuit.
2 Through its thermal trip it can protect the circuit from overload conditions. A circuit breaker will trip if too large a draw or current flow occurs across a thermal shunt inside.
3 It can also have a ground fault circuit interrupter integrated internally in case of a difference in potential between neutral and ground resulting from voltage leakage from appliances or to protect against potential electrocutions.
