Highlight: | MCB |
---|

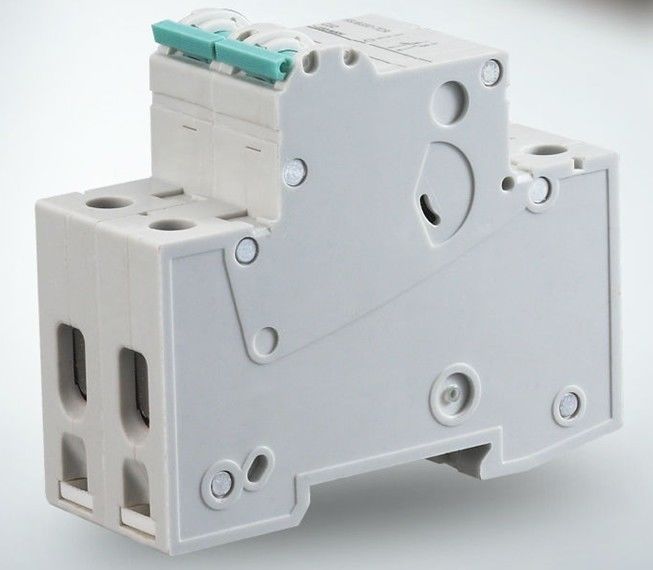

Application of 5SJ series siemens circuit breaker
Construction and Feature
Protection against both overload and short circuit
High short-circuit capacity
Contact position indication
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
Specifications of 5SJ series siemens circuit breaker
Item Name | 5SJ |
Standard | IEC60898/GB10963 |
Product Certifications | CE,ISO9001,SGS |
Product Function | Short circuit protection, Over current protection |
Number of Poles | 1P,2P,3P,4P,1P+N,3P+N |
Rated Current(A) | 1,2,3,4,6,10,13,16,20,25,32,40,50,63 |
Breaking Capacity(A) | 6000 |
Rated Voltage(V) | 230/400 AC |
Rated Frequency | 50/60HZ |
Electro-mechanical Endurance | 4000 |
Circumstance Temperature | -5°C~+40°C |
Connection Terminal | Screw terminal Pillar terminal with clamp |
Energy Limiting Class | 3 |
Rated Impulse Withstand Voltage | 6.2KV |
Connection Capacity | Rigid conductor up to 25mm² |
Tripping Curve | B,C,D |
Fastening Torque | 2.0Nm |
Installation | On symmetrical DIN rail 35mm Panel mounting |
Terminal Connection Height | 19mm |
Ultimate-mechanical Endurance | 4000 |
Electrical Life | No less than 8000 operations |
Mechanical Life | (o-c)No less than 20000 operations |
Protection Degree | IP20 |
As a professional and reputed manufacturer in China in the field of electrical appliances and automatic equipments,We have our own three factories in china.
1-Huizhou Huizhong Automatic equpment co.,ltd
located in Huizhou city Guangdong Province ,mainly produce pneumatic fittings,pneumatic cylinders,solenoid valves
2.Shanghai Yongzhou International Co.ltd
located in Shanghai China,which mainly produce and export power supply,plastic items..
3.Wenzhou Yongzhou International Co.,ltd
located in Wenzhou city,Zhejiang province China,mainly produce circuit breakers,industrial plugs and sockets.
We guarantee all of our products made by us are high quality
