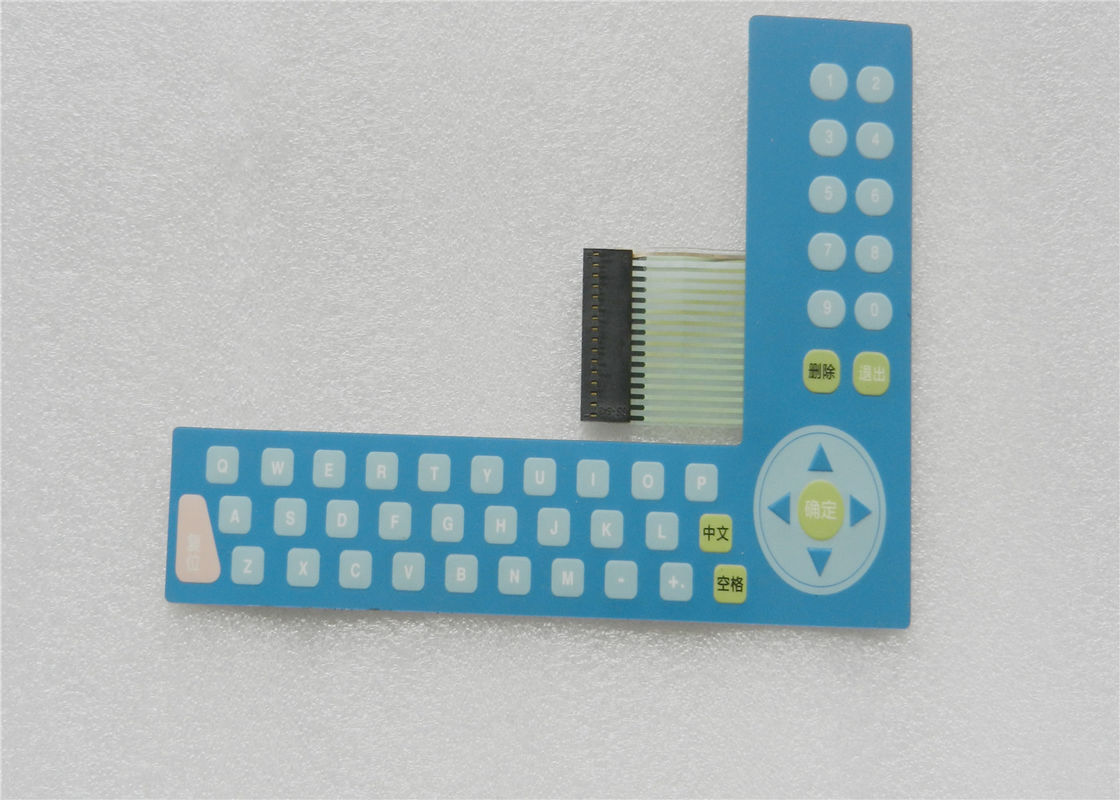

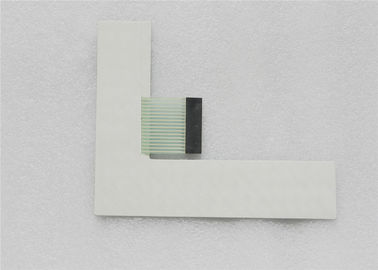

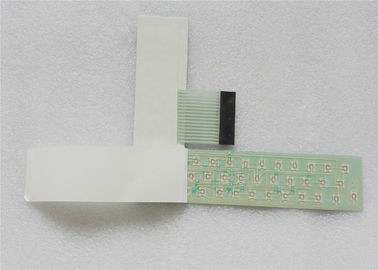

Professional Push Button Flexible Membrane Switch With LED OEM / ODM

Professional Push Button Flexible Membrane Switch With LED OEM / ODM
Professional Push Button Flexible Membrane Switch With LED OEM / ODM

Large Image :  Professional Push Button Flexible Membrane Switch With LED OEM / ODM

Product Details:
Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Detailed Product Description
High Light:

single membrane switch


waterproof toggle switch

Professional Push Button Flexible Membrane Switch With LED OEM / ODM
Quick Detail:
1. Waterproof
2. PET/PC overlay
3. 100% QC
4. Short lead time
5  Custom made(best service,high quality,low price)

6. otal thickness : 1.3 mm
Why can you choose Shenzhen BOERZHUO ELECTRONIC CO., Ltd:
We are a professional manufacturer of membrane switch in Shenzhen, China.
Our main products: Membrane switch
                                   Graphic overlay
To be specific, we are a processing factory, so Both OEM and ODM orders are welcome.
Our company has attained certificate of ISO9001:2008, we promises High quality products. Over 200 customers at home and abroad have chosen us.
Key specifications/special features:
1. Customized specification is available.
2. Beautiful appearance, long life-span, good tactility, abrasion resistant, dustproof, oil resistant, waterproof, etc.

3. High quality printing.
Technical Parameters
1. Electrical
Maximum Circuit Rating: 35V(DC),100mA,1W
Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: < 5ms
Life:   Flat: ≥ 5million times
          Tactile: ≥ 1 million times
           Dura switch: ≥ 10million times
2. Mechanical
Actuation Force: Flat: 57~284g(2~10oz)
                             Tactile: 170~397g(6~14oz)
Switch Height:  Flat: 0.1~0.5mm
                            Tactile: 0.6~1.5mm
3. Environment
Operation Temperature: -40~+80 Degree Centigrade
Storage Temperature: -40~+80 Degree Centigrade
Humidity: 90%~95%, 240 hours
UL Approval
CE certification
SGS Lead-free certification


PCB+Components+PCB Assembly
1: SMT/DIP Automatic PCB Assembly
2: PCB,PCBA Copy Services,Function Test
3: UL,RoHS,SGS,ISO9001
4: Membrane Switch
Key Specifications/Special Features:
Both Pantone and real color matching system, using advanced light box and computer color matching
Good material control to make sure all the materials are high quality
Compliant with the RoHS Directive
100% functional testing and specified testing, such as humility testing, life expectancy testing, actuation force testing
Except membrane switch and touchscreen, different types of assembly, such as membrane switch and touchscreen with FPC, PCB, silicone rubber, metal backer, plastic bezel and more
Electrical performance:
Loop resistance: function of trace width and length, 10 to 500Ω (varies from the trace length and material), in most applications the maximum loop resistance is less than 100Ω

Open-circuit: 50MΩ minimum
Contact rating: 100 Milliamps at 36V DC maximum
Maximum circuit rating: 36V DC, 100mA, 1W
Insulation resistance: 100mΩ, 100V
Dielectric: 250Vrms (50 to 60Hz)
Contact bounce: <5ms
Life cycle: 1 million times nominal
Operating temperature range: -45 to +80°C
Flat button can reach to 5 million times

Actuation force:
Flat: 57 to 284g (2 to 10oz)
Tactile: 170 to 397g (6 to 14oz)

Switch height:
Flat: 0.1 to 0.5mm
Tactile: 0.6 to 1.5mm

Operating temperature: -40 to 80°C
Storage temperature: -40 to 80°C
Humidity: 90 to 95% RH

Primary Competitive Advantages:
Green Product
International Approvals
Product Features
Product Performance
Prompt Delivery
Quality Approvals

*well and high quality control
*prompt delivery
*small order acceptable
*perfect craft procedure
*customer's designs are welcome
