PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing

PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing
PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing

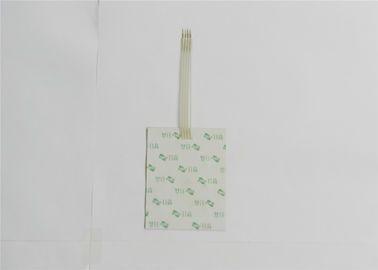

Large Image :  PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing

Product Details:
Place of Origin: China
Brand Name: Wu Yin
Certification: ISO
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
Highlight:

metal dome Membrane Switch


PET / PC Overlay National Adhesive Flexible Membrane Switch With 3M Gluing


Quick Detail:

> Total thickness : 1.12 mm
> Surface :  glossy
> Window : glossy
> Graphic overlay material : 0.188  glossy PET
> Circuit material : PET
> Rear adhesive : national adhesive






Why can you choose SHENZHEN BOERZHUO ELCTRONIC CO.;LTD



We are a professional manufacturer of membrane switch in Shenzhen, China.



Our main products: Membrane switch

                                    Touch screen

                                    Nameplate

                                   Graphic overlay

To be specific, we are a processing factory, so Both OEM and ODM orders are welcome.



Our company has attained certificate of ISO9001:2008, we promises High quality products. Over 200 customers at home and abroad have chosen us.





Specifications



1. Waterproof

2. PET/PC overlay

3. 100% QC

4. Short lead time

Custom made(best service,high quality,low price)



Key specifications/special features:
1. Customized specification is available.

2. Beautiful appearance, long life-span, good tactility, abrasion resistant, dustproof, oil resistant, waterproof, etc.

3. High quality printing.





Technical Parameters



1.  Electrical



Maximum Circuit Rating: 35V(DC),100mA,1W



Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)



Insulation Resistance: 100MΩ 100V



Dielectric: 250 Vrms (50~60Hz 1min)



Contact Bounce: < 5ms



Life:   Flat: ≥ 5million times



          Tactile: ≥ 1 million times



           Dura switch: ≥ 10million times







2. Mechanical



Actuation Force: Flat: 57~284g(2~10oz)



                             Tactile: 170~397g(6~14oz)



Switch Height:  Flat: 0.1~0.5mm



                            Tactile: 0.6~1.5mm







3. Environment



Operation Temperature: -40~+80 Degree Centigrade



Storage Temperature: -40~+80 Degree Centigrade



Humidity: 90%~95%, 240 hours
