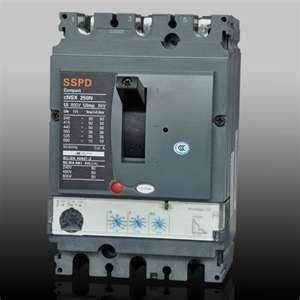

Circuit breaker NSX630N 3P AIR CIRCUIT BREAKER
The Circuit Breaker (NSX MCCB),scope:12.5A to 1600A, CE,ISO9001,CCC approved,more than 10 years OEM experience.
Circuit Breaker
The Moulded Case Circuit Breaker (electronic circuit breaker) is the one of the most advanced type Circuit Breakers in the world, which adopts international advanced design and manufacture technology. The moulded case circuit breakers are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12. 5A to 1600A. It takes protecting effect when motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage. Fixed or withdrawable, front or rear connection, manual operating mechanism or motor mechanism is choice.
Electrical characteristics as per IEC60947-2 and EN60947-2
SECIFICATION:
Moulded Case Circuit Breakers(NSX630) |
||||||
Number of poles |
3,4 |
|||||
Rated current (A) |
In |
40 |
630 |
|||
65 |
630 |
|||||
Rated insulation voltage (V) |
Ui |
800 |
||||
Rated impluse withstand voltage (kV) |
Uimp |
8 |
||||
Rated operational voltage (V) |
Ue |
AC |
50/60Hz |
690 |
||
DC |
500 |
|||||
Type of Circuit Breaker |
N |
H |
L |
|||
Ultimate breaking capacity (kA rms) |
Icu |
AC 50/60 Hz |
220/240V |
85 |
100 |
125 |
380/415V |
36 |
70 |
125 |
|||
440V |
35 |
65 |
125 |
|||
500V |
30 |
50 |
90 |
|||
525V |
22 |
35 |
90 |
|||
660/690V |
8 |
10 |
50 |
|||
Service breaking capacity (kA rms) |
Ics |
%Icu |
%100 |
|||
Utilisation category |
A |
|||||
Durability (C-O cycles) |
Mechanical |
5000 |
||||
electrical |
400V |
In |
1200 |
