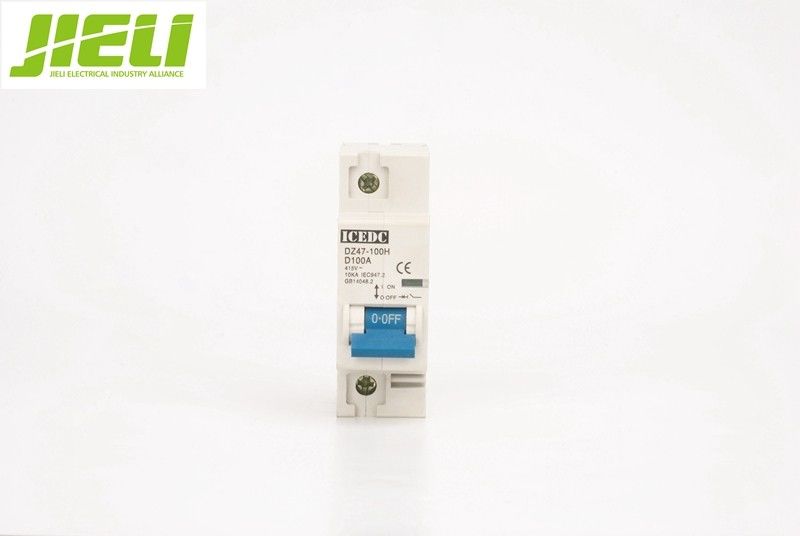

NC Small Mini Circuit Breakers 80A / 100A / 125A , Overload Circuit Breaker
Quick detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JL-NC100H |
|
Type: |
Mini |
Poles Number: |
2 |
Products define:: |
Mini circuit breaker |
|
Shell material:: |
flame-retardant thermoplastic |
Mounting mode:: |
DIN rail 35mm |
Function:: |
for overload and short circuit protection; isolation |
|
Rated voltage:: |
230/400V |
Rated current:: |
6,10,16,20,25,32, 40,50,63A |
Electrical life:: |
4000 times |
|
Thermo-magnetic release characteristic:: |
B,C,D |
Number of poles:: |
2 pole |
Mechanical life:: |
10000 times |
Description:
1.JL-NC100H mini circuit breaker shell: it is made of fire-resisting and reinforced plastic
2.JL-NC100H mini circuit breakerstatic contact: it is made up of 85% silver point and cooper;
3.JL-NC100H mini circuit breaker moving contact: it is made up of 85% silver point and red cooper;
4 JL-NC100H mini circuit breaker magnetic release: it is made up of sleeve coil, plastic sleeving and core;
5 JL-NC100H mini circuit breaker thermal release: it is made up of bimetallic element and iron bracket;
6 JL-NC100H mini circuit breaker terminal lug: it is made of iron;
7 JL-NC100H mini circuit breaker arcing chamber with nine pieces;
8 JL-NC100H mini circuit breaker spring: it is made of stainless steel.
Applications:
JL-NC100H Mini circuit breaker is the most widely used in building electrical terminal distribution device of a terminal protection appliances.
JL-NC100H mini circuit breaker is mainly used in Industrial, commercial, high-rise and civil residence.
Specifications:
|
Electrical features |
Rated current In |
A |
1,3,6,10,16,20,25,32,40,50,63 |
|
Poles Rated voltage Ue |
|
1P,2P,3P,4P |
|
|
V |
230/400 |
||
|
Insulation voltage Ui |
V |
500 |
|
|
Rated frequency |
|
50/60HZ |
|
|
Rated breaking capacity |
A |
3000,4500,6000 |
|
|
Rated impulse withstand voltage (1.2/50)Uimp |
V |
4000 |
|
|
Dielectric test voltage at ind .Fred .for 1min |
kV |
2 |
|
|
Pollution degree |
|
2 |
|
|
Thermo-magnetic release characteristic |
|
B,C,D |
|
|
Mechanical features
|
Electrical life |
|
4000 |
|
Mechanical life |
|
10000 |
|
|
Protection degree |
|
IP20 |
|
|
Reference temperature for setting of thermal element |
°C |
30 |
|
|
Ambient temperature (with daily average≤35°C) |
°C |
-5….+40 |
|
|
Storage temperature |
°C |
-25…+70 |
|
|
Installation
|
Terminal connection type |
|
Cable/Pin-type busbar |
|
Terminal size top /bottom for cable |
mm2
|
25 |
|
|
AWG |
18-3 |
||
|
Terminal size top /bottom for busbar |
mm2
|
25 |
|
|
AWG |
28-3 |
||
|
Tightening torque |
N*m |
2 |
|
|
In-Ibs |
18 |
||
|
Mounting |
|
On DIN rail 35mm |
|
|
Connection |
|
From top and bottom |
Competitive Advantage:
♥The world's first supplier of MCB OJM service.
♥The world's first supplier of MCB spare parts solution.
♥To be the first international MCB market solution supplier.
♥The world's first supplier of building MCB factory solution
Our service:
1. Samples: provide free samples.
2. Package: all products will be well packed before shipping.
3. Warranty: all products have 2-5 years warranty.
4. Delivery: within 30days after received the deposit.
5. Provide OEM and ODM service.
6. We can help you with any of your idea to design and put it into production.
7.Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...
