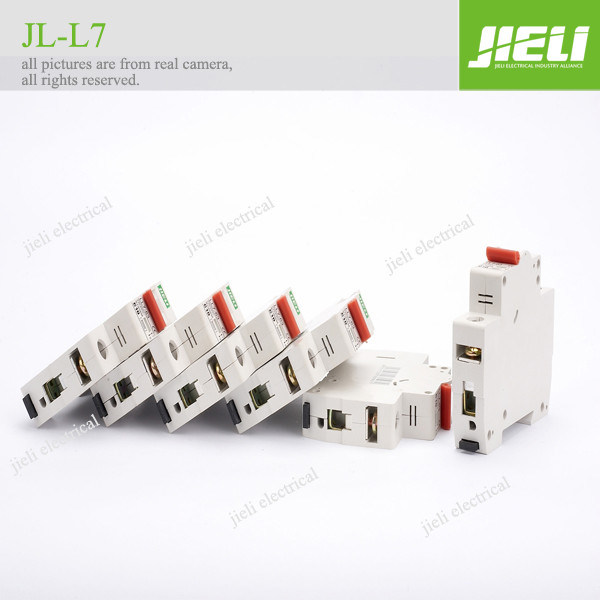

Miniature Circuit Breaker Made Of Highly Fire-retardant And Shockproof Plastic In SKD

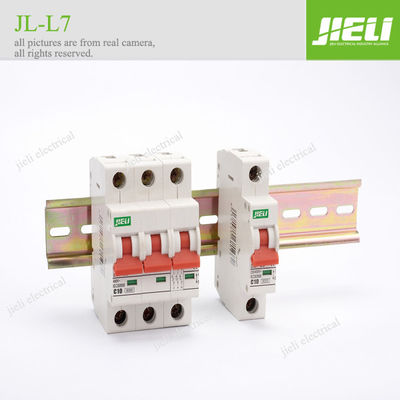

Large Image : Miniature Circuit Breaker Made Of Highly Fire-retardant And Shockproof Plastic In SKD

Product Details:

Place of Origin:	Zhejiang,China(Mainland)
Brand Name:	JIELI
Certification:	CE,ISO9001,ROHS
Model Number:	JL-L7

Payment & Shipping Terms:

Minimum Order Quantity:	1200 Piece/Pieces other
Price:	Negotiable
Packaging Details:	Standard export carton or according to your request.
Delivery Time:	Within 20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability:	50000POLES/DAY

Contact Now

Detailed Product Description

Highlight:	mcb circuit breaker

Miniature Circuit Breaker Made Of Highly Fire-retardant And Shockproof Plastic In SKD

Quick Detail:

Model: JIELI
Parts: cooper/brass parts
Cover: fire proof
Point: silver /cooper point
Poles: 1P,2P,3P,4P,1P+N,3P+N
Breaking capacity: 4.5KA, 6KA
Current: 1A-5A, 6A-63A

Description:

Mini Circuit Breaker(MCB) is applicable to circuit with rated voltage up 400V AC,

rated frequency 50/60Hz and rated current up to 63A for protection and control

of circuit against overload and short circuit in commercial, household and electric

equipment installation.

Mini Circuit Breaker is suitable for non-frequently making and breaking operation.

And JL-MW Mini circuit breaker also have many merits of high protective grade (up to IP20),

high breaking capacity, good reliability of sensitive action, convenient multi -pole assorting,

long using life etc.

Applications:

Mini circuit breaker are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors.

Specifications:

Item name :	JL-L7
Standard :	IEC60898/GB10963
Product Certifications :	CE,CB,3C
Product Function :	Short circuit protection, Over current protection
Rated current(A) :	2-63
No of pole :	1P,2P,3P,4P,1P+N,3P+N
Rated voltage(V) :	230/400V
Rated frequency(Hz) :	50/60
Fiducial temperature :	30°C
Environment temperature :	-35~70°C
Installation style standard :	35mm guide
Connection type :	Tunnel style, Pin style, U style
Biggest wiring ability :	25mm2
Magnetic tripping curve :	B(3-5In),C(5-10In),D(10-20In)
(ICU)Rated capacity of short circuit:	6000
(ICS)Operation capacity of short circuit :	6000
Mechanical life :	10000
Electrical life :	4000
Protection degree :	IP20
