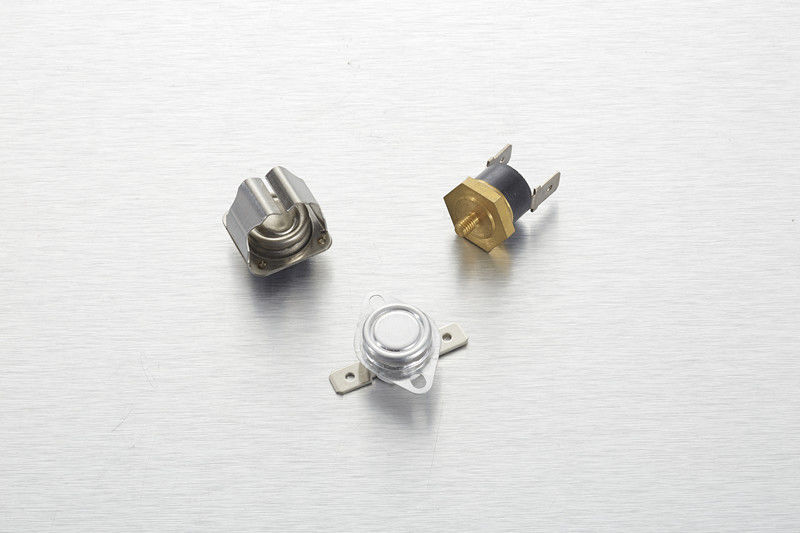

KSD301 Mini Thermal Overload Protector

KSD301 Mini Thermal Overload Protector
KSD301 Mini Thermal Overload Protector

Large Image :  KSD301 Mini Thermal Overload Protector

Product Details:
Place of Origin: China
Brand Name: DESHENG
Certification: TUV CQC
Model Number: KSD
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: 10,000pcs per carton
Delivery Time: 5-10 days on order date
Payment Terms: T/T L/C D/P
Supply Ability: 300,000pcs per month
Detailed Product Description
Product Name: Thermal Overload Protector Contact Capacity: 125Vac/8A, 250Vac/5A, 24Vdc/8A
Cycles Life: 6,000 Cycles Seal: Epoxy Resin
Temperature Tolerance: ±5°C Certifications: UL,VDE,CE CQC
High Light:

thermal overload protectors


overload protector


thermal overload protection

KSD 301 Snap-Action Thermostat , Thermal Overload Protector For Water Heater



Key Specification


Detailed Product Description
1.Auto/ manual 10A/250V
2.Bakelite body or ceramic body
3.Vertical or horizontal terminal
Detailed Product Description
Applications of KSD301 Thermostat
1. Water dispenser, Electric heater, Sandwich toasters, Dishwashers, Dryers, Disinfection cabinet, Microwave ovens, Electric coffee pot,
  electric caldron, Refrigerator, Air conditioning gluing machine
2. Office equipment
3. The seat heater
Advantages of KSD301 Thermostat
1. Stable performance
2. High accuracy
3. Mini-size, light
4. High reliability and long lifespan
5. Little radio interference
6.Less flashover
Special features of KSD301 Thermostat
Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover , reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 ℃ after snap action by pressing the reset button. And 4~6 N will be advisable, please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )


  • Automatic drop coffee machine
  • Water heater
  • Toaster furnace
  • Dish washer
  • Boiler
  • Cooker
  • Drier
  • Electric heating appliance
  • Washing machines
  • Office supplies




 Rated voltage and current

16A/125VAC,10A/250VAC   50HZ/60HZ

 Cycles life

100, 000 cycles


6.35*0.8,  4.8*0.5.

Available Calibration Ranges

40℃ up to 180℃,tolerance ±5℃(insulation material PPS)

Available Calibration Ranges

40℃ up t o 220℃,tolerance ±5℃(insulation material 95 ceramics )

Standard Differential

up to 40° C below the min. switching temperature limit lowest limit 30° C. Other values on request

Pull strength

≥80N, no slip off

Dielectric Strength Terminal to Cap

2000 V eff, 50 HZ

Contact resistance

≤100 mW

Min. Rate of Temp. Rise

0,5° C /min

Ambient Temperature Limits

0° up to 200°



Competitive Advantage:


  • Compliant with the RoHS Directive
  • With TUV and CCC safety certification marks

Tracking Resistance of Base Material   PTI ≥ 250 V
