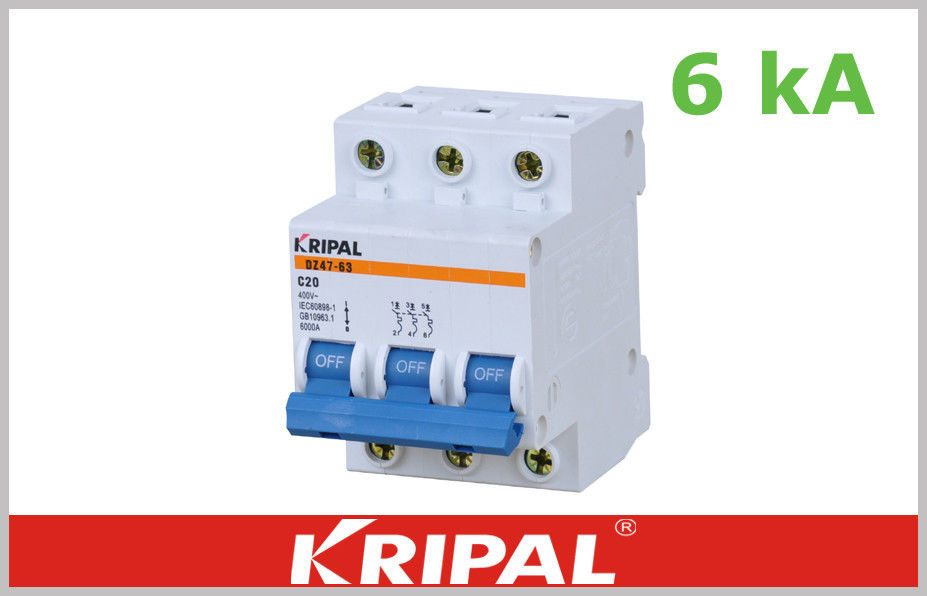

DZ47 MCB Micro Circuit Breaker

DZ47 MCB Micro Circuit Breaker
DZ47 MCB Micro Circuit Breaker DZ47 MCB Micro Circuit Breaker

Large Image :  DZ47 MCB Micro Circuit Breaker

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: DZ47
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Detailed Product Description
Breaking Capacity: 6 Ka Poles Available: 1pole, 2 Pole, 3 Pole, 4pole
Ampere: 6A,10A,16A,20A,25A,32A,40A,50,63A Voltage: 240V/415V
Curve: B; C; D Patent: Design Patent
High Light:

Micro Circuit Breaker


Small Circuit Breaker


DZ47 Mcb Mini Circuit Breaker


A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and interrupt current flow. Unlike afuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. Circuit breakers are made in varying sizes, from small devices that protect an individual household appliance up to large switchgear designed to protect high voltage circuits feeding an entire city.



Product advantages:


1. completely independent intellectual property right,national utility model patent.

2. The overall is nice with sleek and smooth line.

3. It is easy to distinguish with different colors of different specifications.


4.  It is comfortable to operate with embowed handles.


5.  It is flexible to install and dismantle with creative design clips.


6.  Setting oblate direction ,more beauty and more standard.


7.  To meet customers needs with more connection styles.

8. Enhancing the ability of reflex arc when short circuit breaking with many improvements.


9.  Enhancing the ability of extinction arc when short- circuit breaking with many improvements.


10. Short-circuit breaking capacity (ICS) of products get to 6KA combining many improvement.








Number of poles



Rated current(In)



Rated voltage(Un)



Rated frequency



Tripping curve



Release action characteristics

    Time delay

1.13In≥1h non-trip

1.45In<1h trip

2.55In 1S<60S trip

Instantaneous(Curve C)

5In≥0.1S non-trip

10In<0.1 trip

Magnetic releases operate


B curve:between 3 and 5In

C curve:between 5 and 10In

D curve:between 10 and 14In

Rated breaking capacity(Lcn)






Circumstance temperature



Electrical life



Mechanical life


2000 times

Tropical ration


Treatmen 2(RH95%,at 55°c)

Protection degree





DZ47 MCB Micro Circuit Breaker 0DZ47 MCB Micro Circuit Breaker 1
