Concave-convex PCB Flexible Membrane Switch Moisture Proof Control Feel Smooth

Concave-convex PCB Flexible Membrane Switch Moisture Proof Control Feel Smooth
Concave-convex PCB Flexible Membrane Switch Moisture Proof Control Feel Smooth Concave-convex PCB Flexible Membrane Switch Moisture Proof Control Feel Smooth

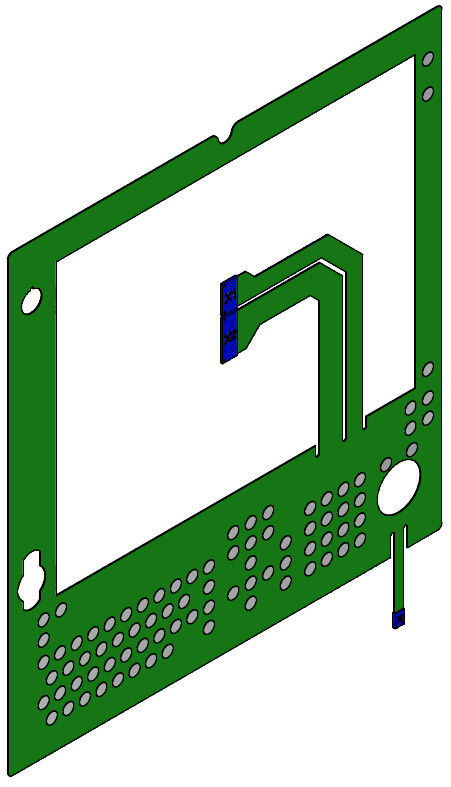

Large Image :  Concave-convex PCB Flexible Membrane Switch Moisture Proof Control Feel Smooth

Product Details:
Place of Origin: China
Brand Name: TKM MS
Certification: ISO9001:2008, SGS,Rohs
Model Number: TKM—MS--377
Payment & Shipping Terms:
Minimum Order Quantity: 1 X pcs
Price: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T , Western Union, , L/C
Supply Ability: 100000Pieces per month
Detailed Product Description
Material: PET Printing: Color Printing, Digital Printing
Circuit: Inner Circuit Adhesive: 3M468
Highlight:

keyboard membrane switch

Concave-convex PCB Flexible Membrane Switch Moisture Proof Control Feel Smooth







Quick Detail:



Flat Printing Circuit
1) Custom made FPC
2) Rasing available
3) Membrane switch circuit
4) Withstand millions of cycles






Description:



FPC membrane switch is the circuit is not an ordinary silver line, but high temperature & corrosion of FPC line

Flat Printing Circuit
1) Custom made FPC
2) Rasing available
3) Membrane switch circuit
4) Withstand millions of cycles



Medical Equipment/Telecommunications apparatus/Telephone systems/Household appliances/Security systems/Point of sale apparatus/Industrial controls/Access control systems

Both OEM and ODM orders are welcome.





Specifications





Material

Copper Film

Adhesive

3M9448, 3M9080, 3M467, 3M468 or no adhesive

Tail

with mylar or UV

Tail flexiblility

any angle within 180 degree

Thickness

above 0.7mm

Pressing lifespan

more than 800,000 times

Metal dome

Nicomatic, nickel plated, gold plated

Contact Bounce

5ms

keys

embossed, rim embossed,or flat

Switch travel

Flat Type 0.05-0.3mm

LED windows:

clear or translucent with all colors







Applications:



Products are widely used in communication, industrial control, household

appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.

Remote control, control board for home appliances, medical equipment , auto, computer and cell phone, etc.





Competitive Advantage:



1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5. Membrane switches with FPC circuit:
Nice appearance and good tightness
Material: Autotype PET, textured PC, Gloss PC with matte finish, PVC
Connector: Nicomatic, FCI, Molex, Zif connector,CJT
Customized designs are accepted
