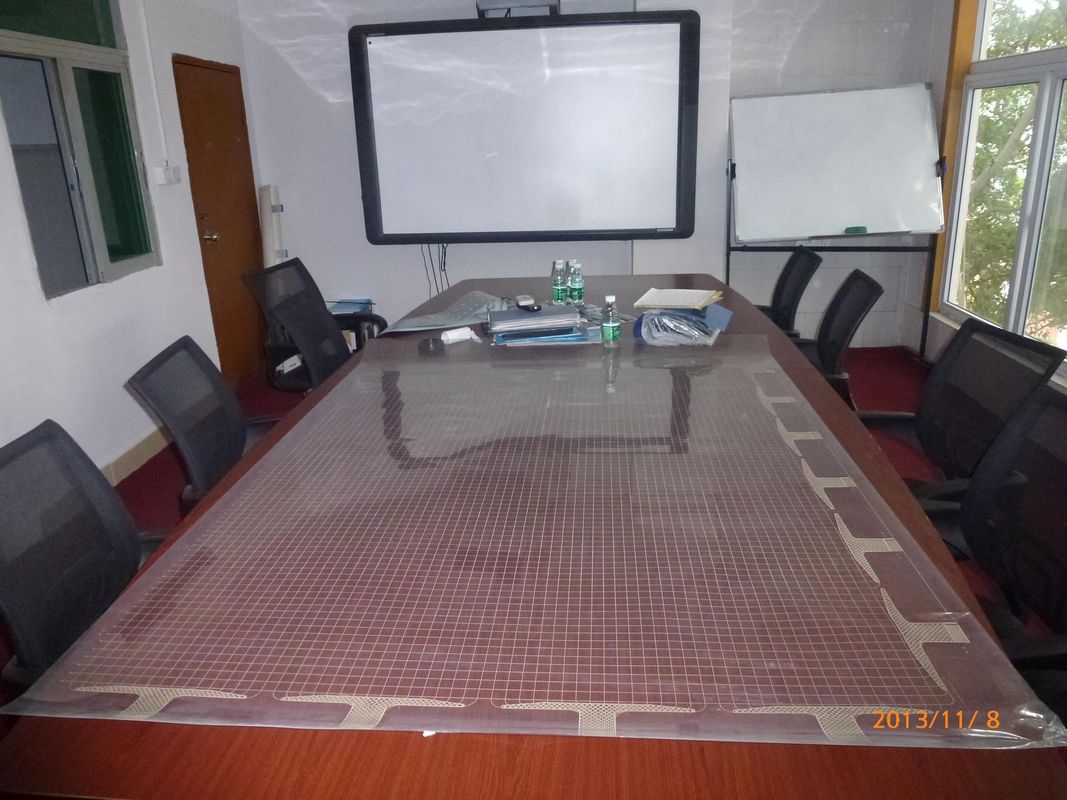

Big Size Screen Printing Flexible Membrane Switch Electronic White Board

Large Image : Big Size Screen Printing Flexible Membrane Switch Electronic White Board

Product Details:

Place of Origin:	Dongguan China
Brand Name:	HHC
Certification:	ISO9001:2008, SGS,Rohs
Model Number:	HC-PL-010

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	Negotiable
Packaging Details:	Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or according to the customer
Delivery Time:	Around 7 business days after deposit received
Payment Terms:	T/T
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

Detailed Product Description

High Light:

printed circuits board

flexible printed circuit board

PET Flexible Membrane Switch , 0V - 30V DC Rated Current

Item Description:

1. Big Size Flexible Membrane Switch
2. Size: 1.6mX2.3m
3. For electronic white board
4. Screen printing
5. Top quality product

Item technical characteristics:

rated current	25-100mA,0～30V DC
material	PET / PC
Adhesive	3M467,3M468,and no adhesive
Feature	moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof
wire lead resistance	＜1Ω/CM
Insulation resistance	＜100MΩ,250V DC

Applications:

Our membrane switches are widely used in :

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Point of sale apparatus

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Industrial controls

Access control systems.....

Specifications:

1 material : PET /PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality

Competitive Advantage:

1. R&D capability
2.Experience in the industy for over 17 years
3.Professional administration team
4.Low cost,
5.High lifespan
6.Quick delivery for samples and mass production. 9 working days for sample and 14 to 18 working days
for mass production.
7.Customized specification is available and keys can make different shapes
