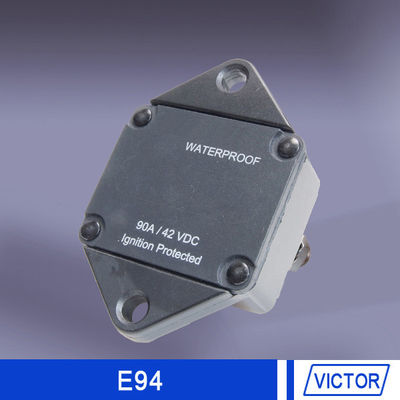

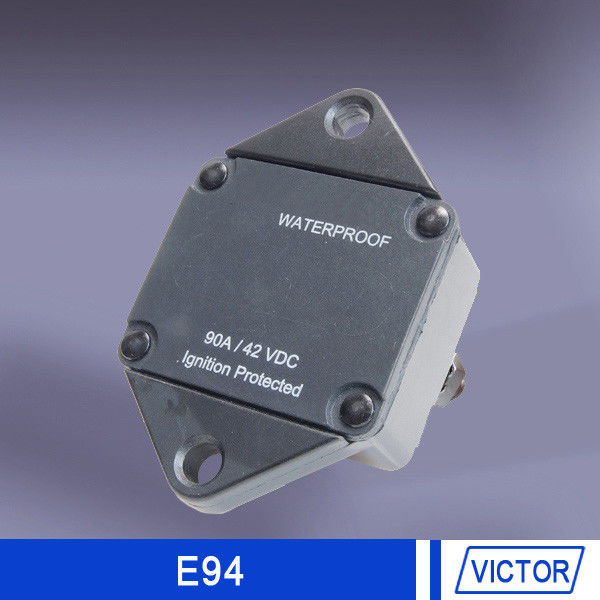

Automatic Reset 12V Circuit Breaker 100A 120A 135A 150A for marine

Automatic Reset 12V Circuit Breaker 100A 120A 135A 150A for marine
Automatic Reset 12V Circuit Breaker 100A 120A 135A 150A for marine

Large Image :  Automatic Reset 12V Circuit Breaker 100A 120A 135A 150A for marine

Product Details:
Place of Origin: CHINA
Brand Name: VICTOR
Certification: SGS UL
Model Number: E94
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: export packing for 12v circuit breaker
Delivery Time: 20 works day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300000 pieces for one Month
Detailed Product Description
Model Number: E94 Reset Type: Automatic Reset
Place Of Origin: China (Mainland) Guarantee Period: 2 Year For Overload Circuit Breaker
Compliances: SAEJ1625 ABYC E-11 CE SAEJ1117 Interrupt: 3000A @30Vdc
Rating: 25 30 40 50 60 70 80 90 100 120 135 150A Housing: Thermoset Plastic, UL Rated 94V0
Approvals: UL Approval
Highlight:

80 amp circuit breaker 12v

Automatic Reset 12V Circuit Breaker  Compact And Lightweight Design For Boating



Specifications:

Automatic Reset 12V Circuit Breaker 100A 120A 135A 150A for marine 0

Interrupt Rating 3000A @30V DC
Operating Temperature -32℃ to 82 ℃
Storage Temperature -34℃ to 149℃
Standard Testing  SAE J1625 ; SAE J1171 (Ignition Protected)
Ratings 25,30,40,50,60,70,80,90,100,120,135,150A
Housing  Thermoset Plastic, UL rated 94V0
Feature Thermal detect by a current trip



Description



1. Manual Reset Design with High-Visibility Switch
2. Suitable for use in marine engine compartments and fuel tank spaces
3. Withstands immersion in water up to 1 meter deep
4. Stainless Steel Connection Points
