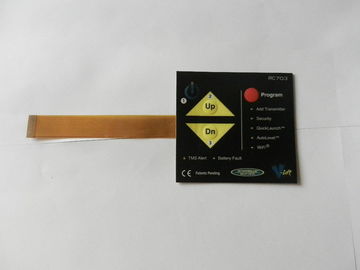

Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button

Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button
Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button

Large Image :  Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button

Product Details:
Place of Origin: China
Brand Name: Wu Yin
Certification: ISO
Life span: >100000 times
Key button: embossed
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
Highlight:

metal dome Membrane Switch



Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button





Quick Detail:



Name

Membrane switch

Brand Name

BEZ

Color

Transparent,red,cool grey,black,white

Feature

Water proof, UV proof ,good tactile feeling ,matte

Life Span

>100000 times

Certificate

RoHS,

Pin

8

pitch

1.0 mm

Push force

220g

Tail protection

0.05 adhesive PET and green oil printed

Resistance

150ohm-220 ohm

size

87mm *82mm





Description:



> Top material: Du Pont PET

> Rear adhesive : 3M467

> Colors: 4 Colors

> Push button: 14

> Tail Length: 125 mm

> Window: glossy clear transparent LED flat window

> Connector: without

> Leds : without

> Can design for customer if supplied artwork and schematic

> 7 days for sample making and 15 days for mass order

> Clear outlook without dirty






Applications:



1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
  B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
  C. For domestic appliance , remote control ,electronic lock , washing machine , microwave oven ,electric cooker ,sound installation and so on

D. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on .

E. For electronic toy, such as electronic organ, recreational machine, electronic target and so on .


3. Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome

Tail end inserting to female connector usually only allowed no more than 20 times





Specifications



Model

45-3

Graphic overlayer

F150

Embossed  style

                   Metal dome

Adhesive

3M467

Resistance

150 ohm

Pitch

1.0 mm

Tolerance

0.05 mm

Printing Colors

Transparent, red, yellow, blue ,black ,grey

Window

Transparent clear glossy





Why to choose Shenzhen boerzhuo membrane switches?



1. No need to worry about the qualities (We take response if our reason lead failure ).
2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3. We are specialized ,can help to design and make good suggestion .





Communication with customers

A: Hello, Can you help me ? What’s the different from membrane switches and membrane panel ?

B: Dear, the most difference is that membrane switches with circuit layer ,however membrane panel without .





A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A:Which shipping partner is available ?

B: DHL, UPS, TNT, FEDEX, forwarder are okay. Which shiping cost is cheaper and speed is good, i will suggest to you. 3-4 days can arrive.



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
