108 key Industrial Membrane Keyboard

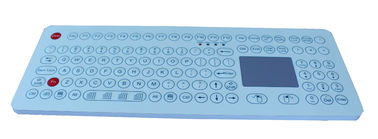

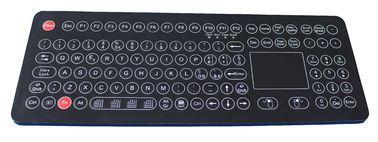

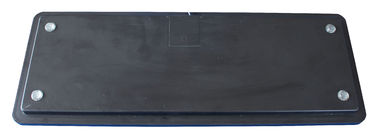

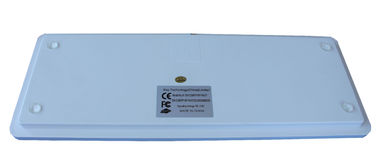

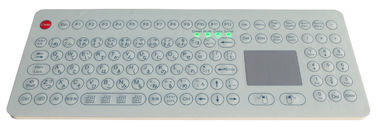

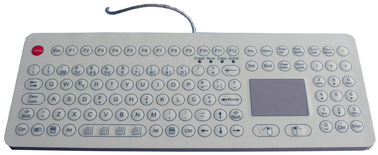

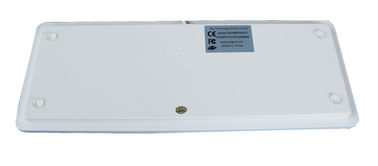

Large Image : 108 key Industrial Membrane Keyboard

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-D399TP-KP-FN-DT

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Detailed Product Description

USB:	Industrial USB Cable With 2.5m	PS2:	Optional
Black Keyboard:	Yes (white Optional)	Touchpad:	Yes
Trackball:	Optional	Waterproof / Dustproof:	Yes
Highlight:	custom membrane keyboard

108 key With Touchpad Industrial Membrane Keyboard for medical application

Special Features:

1. stand alone movable desk top version with robust polycarbonate case.

2. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

3. The foil-covered aluminum front plate is mounted flush for easy cleaning.

4. with integrated numeric keypad and function keys on the upper line
5. 108 keys IP68 dynamic scratch proof industrial military medical membrane keyboard with full keyboard functionalities.

6. with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC
7. Durable and anti-microbial keyboard surface

8. PS2 or USB both are available

9. for medical application

10. CE, FCC, ROHS

11. trackball optional

MECHANICAL DATA
Key	108
Key switch Technology	metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
Actuation Force:	1.0N for key 13.0mm x 13.0mm (press point)
Key travel	0.45mm
Key switch Lifetime	3 mil. operations
Protection Level	IP68, NEMA 4x
Mounting Type	Desk Top or Top panel mounting
Operating Temperature	-20 °C to +50 °C
Colors	4 (Blue, White, Grey, Black)
G.W.	1.60KGs
Key Dimensions (print area)	13.0mm x 13.0mm
Dimensions	399.0mm x 150.0mm x 20.0mm (L x W x H)
