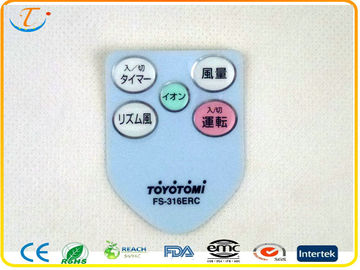

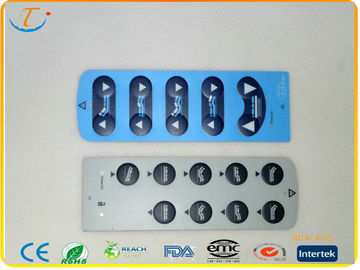

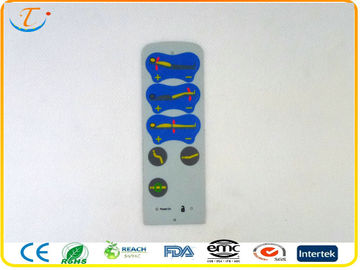

Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing

Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing
Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing

Large Image :  Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing

Product Details:
Place of Origin: DongGuan China
Brand Name: HHC
Certification: ISO9001:2008 ,SGS,RoHs etc.
Model Number: TT-MO-006
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Packaging Details: Inner packing:1pc/PP bag,PE bag; Outer packing: exporter carton, or as per customer request.
Delivery Time: Around 14-18 business days after payment.
Payment Terms: T/T, Paypal or Western union
Supply Ability: 500000 Piece/Pieces per Month
Detailed Product Description
High Light:

membrane switch overlay

,

graphic overlay printing

Industrial Controller Thin Film Graphic Overlays Membrane Panel With Glossy / Matte Finishing





Description:



Thin-film panel:

  1.  perfect exterior
  2.  Finish: glossy or matte.
  3.  Matching color:Pantone and RALcolor matching system.
  4.  SMD welding or by hand welding as per request
  5.  Withstand millions of cycles
  6.  Standard Tolerances:+/- 0.10inch(+/-0.25mm)





Applications:



Our membrane switches are widely used in :



  •  Human Machine interface
  •  Automatic Control Equipment
  •  Telecommunications apparatus
  •  Telephone systems
  •  Household appliances
  •  Security systems
  •   Industrial controller
  •  Access control systems.....



wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree





Specifications:



1 material : PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality





Competitive Advantage:



1. Strong capability in R&D.

2. Professional staff in Production, management, and engineering, experienced in the industry for over 17 years.

3. Professional Sales team can provide quick service.

4. Low cost and top quality

5. Long lifespan,Our membrane switch is more than 100million times.

6.  In-house 100% functionally tested before delivery.

7. Customized specification is available .

8.  ISO9001:2008 certified company with three factories, Can provide one station resolution for client.
