LED Light Flexible Membrane Switch Autotype PC / PET Overlay For Electronic Appliance

China LED Light Flexible Membrane Switch Autotype PC / PET Overlay For Electronic Appliance supplier

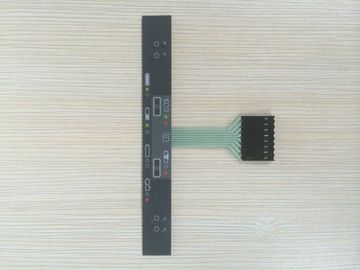

Large Image :  LED Light Flexible Membrane Switch Autotype PC / PET Overlay For Electronic Appliance

Product Details:

Place of Origin: Dongguan China
Brand Name: TianTai
Certification: ISO9001:2008, SGS,Rohs
Model Number: TT-09-18

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: USD 0.3~9
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or As per customer request
Delivery Time: Normal days: 20-25 business days after payment
Payment Terms: T/T, Paypal or Western union
Supply Ability: 100000 Piece/Pieces per Month
Contact Now
Detailed Product Description

LED Light Flexible Membrane Switch Autotype PC / PET Overlay For Electronic Appliance









Description:

Membrane switch:



  1.  With LED light
  2.  Autotype PC or PET overlay
  3.  100% QC
  4.  Rear Adhesive: 3M467 or 3M468
  5.  Matching color:Pantone and RALcolor matching system.
  6.  SMD welding or by hand welding as per request
  7.  metal dome or polydome, assemble with silicone keypad is also available.
  8.  Withstand millions of cycles
  9.  Standard Tolerances:+/- 0.10inch(+/-0.25mm)
  10.  Custom:size, color, thickness, shape, Logo.




Applications:



Our membrane switches are widely used in :

  •  Medical equipment
  •  Automatic Control Equipment
  •  Telecommunications apparatus
  •  Smart toy's
  •  Household appliances
  •  Security systems
  •  Industrial controller
  •  Access control systems.....



Specifications:




wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at 40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree



1 material : PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality and fine workmanship

6.Prompt Delivery


Competitive Advantage:



1. Strong capability in R&D.

2. Professional staff in Production, management, and engineering, experienced in the industry for over 12 years.

3. Professional Sales team can provide best after-sales service.

4  Competive price and top quality

5. Long lifespan,Our membrane switch is more than 100million times.

6. In-house 100% functionally tested before delivery.
7. Offer OEM / ODM service.
8. Strit quality control from every manufacturing step
