Custom Electronic Membrane Switch Keypad Waterproof Flexible With Embossed Dome

China Custom Electronic Membrane Switch Keypad Waterproof Flexible With Embossed Dome supplier

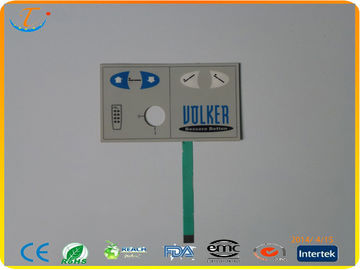

Large Image :  Custom Electronic Membrane Switch Keypad Waterproof Flexible With Embossed Dome

Product Details:

Place of Origin: dongguan,guangdong,china
Brand Name: tiantai:Flexible membrane switch
Certification: ROHS
Model Number: TT:01

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: EXW price/FOB shenzhen port price
Packaging Details: standard export package
Delivery Time: within 15 workdays after confirm sample
Payment Terms: T/T,Western union,Paypal
Supply Ability: 1000000pcs/year
Contact Now
Detailed Product Description

Custom Electronic Membrane Switch Keypad Waterproof Flexible With Embossed Dome









It is a Keypad with flexible tail with/ without connector as per design and application. The Keys are mounted on multi layers of punched flaxible polymer sheets (typically polyester) sandwiched together. Circuits are silk-screened with conductive silver ink on both the top and bottom membrane layers. Low cost , reliable Keypads, alternative Key-life exceeds - - 5 million

Keystrokes, also lighter than a PCB, Flaxible circuits allow Product from which is not possible with rigid PCB. Rim & Pillow Type Emboss available on demand . Male Female Clincher connector are used.







Applications:




• Automobile
•Medical Equipment
•Telecommunications apparatus
•Telephone systems
•Household appliances
•Security systems
•Point of sale apparatus









Parameters:





1.Electronic characteristics
Circuit rating 35V (DC), 100mA, 1W
Contact resistance 10Ω~500Ω (According the trace length and materials)
Insulation resistance > 100M 250V DC
Contact bounce ≤ 5ms
Dielectric withstand 250VRms (50~60Hz 1min)
Life expectancy flat type ≥ 5 million times, tactile type ≥ 1 million times
2.Mechanical Properties
Actuation force flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)
Switch stroke flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm
3.Environmental parameters
Operating Temperature -40°C~+80°C
Storage temperature -40°C~+85°C
Humidity 40°C, 90% ~95%, 240 hours







Membrane switches can be used in a great variety of low-voltage applications, from microprocessor-based systems to data entry pads and digital control panels. While thin and flexible, these screen-printed circuits are also rugged and reliable, and free from the common failures associated with mechanical parts. Membrane switches are flexible and must be mounted on a rigid backer panel, plastic, metal or a printed circuit board.
