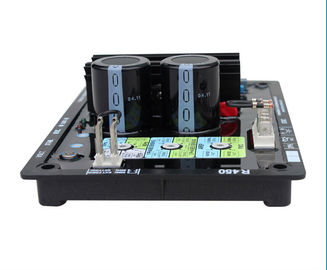

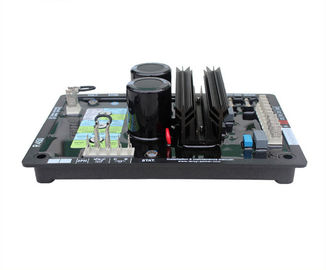

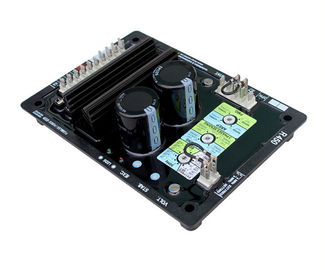

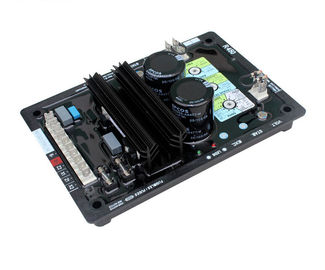

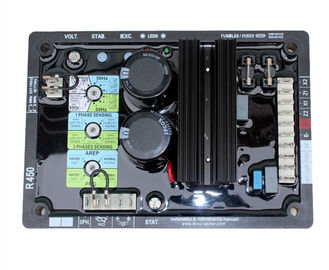

Leroy Somer Alternator Spare Part Automatic Voltage regulators avr R450
AVR for Brushless Generator R450
The R450 AVR is supplied in a casing designed to be mounted on a panel with dampers. Both the SHUNT/AREP & PMG excitation systems are controlled by the AVR. With AREP excitation, the electronic AVR is powered by two auxiliary windings which are independent of the voltage sensing circuit. The connection is realised by “Faston”connectors and the voltage sensing is single - phase.Operating temperature: - 30℃ to + 65℃.Good stability and high quality.
Features:
1. Leroy SomerAutomatic Voltage Regulator R450
2. Single or three phase voltage sensing with optional module.
3. Load acceptance module, PMG / AREP excitation system
4. Phase to phase voltage sensing.
5. Suitable for high levels of vibration and harsh environments
Main characteristics:
1.Voltage regulation +/- 0.5% at steady state and constant speed.
2. Control by transistor means that the regulation quality is independant of applied load.
3. Phase to phase voltage sensing.
4.Suitable for high levels of vibration and harsh environments.
5. Integrated "LAM" and " auto adaptative LAM" system to cope with load impacts applied to the engine
6. AREP or PMG excitation with normal or fast response.
7. Single or three phase voltage sensing with optional module.
8. Rotating switch facilitating selection.
Description:
Leroy somer R450 AVR is powered by two auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor. With PMG excitation, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage.
On AppliCAT-parts-partsion of load, the rotation speed of the generator set deceases, when it passes below the preset frequency threshold the LAM causes the voltage to drop by approximately13% or 25% and consequently the quantity of active load applied is reduced by approximately 25% to 45%, until the speed reaches its rated value again. Hence the LAM can be used either to reduce the speed variation (frequency) and its duration for a given applied load, or to increase the applied load probable for one speed variation (turbo-charged engine).
Datasheet:
| Leroy Somer AVR | R450 |
| Sensing voltage | terminal 0-110V=95-140V terminal 0-220V =170-260V terminal 0-380V=340-520V |
| Frequency | 50-60Hz |
| Voltage input | 40-50VAC, 3 phase |
| Harmpnic auxiliary winding | 6-150VAC (no-load rms) |
| Output Voltage | max 160VDC at 120VAC input |
| Current | max 10A |
| Resistance | 15 Ω minimum |
| Regulation | +/-5% RMS with 4% engine governing |
| Voltage build-up | Residual voltage at avr terminal≥5VAC |
| External Voltage Adjustment | +/-10% with 1k ohm 1 watt trimmer |
1. Leroy SomerAutomatic Voltage Regulator R450
2. Single or three phase voltage sensing with optional module.
3. Load acceptance module, PMG / AREP excitation system
4. Phase to phase voltage sensing.
5. Suitable for high levels of vibration and harsh environments
Main characteristics:
§ Voltage regulation +/- 0.5% at steady state and constant speed.
§ Control by transistor means that the regulation quality is independant of applied load.
§ Phase to phase voltage sensing.
§ Suitable for high levels of vibration and harsh environments.
§ Integrated "LAM" and " auto adaptative LAM" system to cope with load impacts applied to the engine
§ AREP or PMG excitation with normal or fast response.
§ Single or three phase voltage sensing with optional module.
§ Rotating switch facilitating selection.
| R450 | |
| Voltage | 230± 2V |
| Voltage Steady Range | ± 1V |
| Starting Excitation Voltage | ≥1.5V |
| Loading Capacity | With 110% loading, the regulator can work normally |
| Output Voltage Steady on hot and cool condition | ≤2V |
| Temperature float on Output Voltage | ≤2V |
