Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems

China Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems supplier
Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems supplier Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems supplier

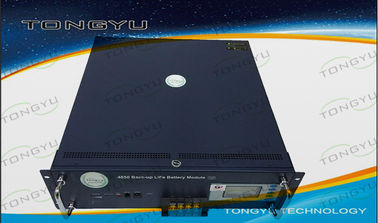

Large Image :  Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems

Product Details:

Place of Origin: Guangdong,China
Brand Name: TONGYU
Certification: CE,ROSH,UN38.3
Model Number: TY-48V50A-5

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Industrial Package
Delivery Time: 10days for samples, 20-25days for batch orders
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Voltage: 48V Capaity: 50Ah
Weight: 29KG TONGYU Item: TY48V-50A-5
Normal Discharge Current: 5A Float Charge Life 80%DOD: 8years

Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems





(1)    Realize directly work in the primary dc telecommunication switching power supply system with the constant charge and discharge working mode .

(2)    Li-Fe backup battery system is the high-tech product manufactured by TONGYU TECHNOLOGY, with proprietary intellectual property rights, the product fill in the blank inland,andthe key technical indexes in the lead level of the world.





 Main Advantages:



1) Super Long Cycle life

2) Light and slim which reduce the floor load-bearing and room area.

3) Excellent high Temperature performance makes it suitable for outdoor TBS in harsh environment.

4)Perfect recovery feature makes it suitable for remote areas where power failure happens often,

5)Longer life(5-10year) service life) for base station.





Specifications:



TONGYU Item TY48V-50A-5
Nominal Capacity 50Ah
Nominal Voltage 48V
Normal discharge current 5A
Maximum continuous current 50A
Discharge cut-off voltage 43.2V
Max charge voltage 58.4V
Resistance AC 1KHZ <200m ohm
Float charge life 80%DOD 8years
Cycle life 80% DOD >1000 cycles
Input voltage Single phase 120-288VAC@50% load
Humidity 5%≤RH≤85%
Size : 440*420*88MM
Weight 29kg
Protection function Overcharge protection, Over discharge protection, Over current protection, Temperature protection, Balanced function





Applications:

  • Small or middle capacity access network equipment,
  • Remote exchange office.
  • Mobile communication equipment.
  • Transfer equipment,
  • Satellite earth station,
  • Micro wave communication equipment
  • Telecom base station, SMR cable UPS , ISDN, Data centre server , Solar UPS



Feature:

  1. Easy to mount and maintain ,
  2. Intra-balancing ,
  3. Up to 3 battery packs in parallel to capacity expand ,
  4. Extremely low voltage drop after more modules in series ,
  5. Judging the status of battery pack by LED indicator .



Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems

Efficiency 48V Solar Power Storage Battery 16S 50Ah Backup Battery Systems
