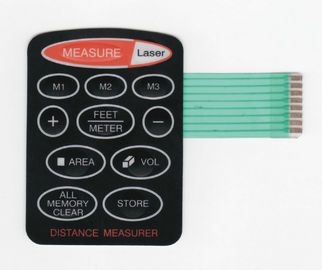

PET Moisture Proof Membrane Switch With 25mA - 100mA Rated Current

PET Moisture Proof Membrane Switch With 25mA - 100mA Rated Current
PET Moisture Proof Membrane Switch With 25mA - 100mA Rated Current

Large Image :  PET Moisture Proof Membrane Switch With 25mA - 100mA Rated Current

Product Details:
Place of Origin: Dongguan China
Brand Name: customization
Certification: ISO9001
Model Number: HHC-MK-004
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Inner packing: foam and bubble bags outer packing: export carton or according to the customer requ
Delivery Time: 7-15 workdays
Payment Terms: T/T
Supply Ability: 1000000 pieces per month
Detailed Product Description
Operation Temperature: -40℃~70℃ Insulation Resistance: <100MΩ,250V DC
Certificate: SGS , Rohs Feature: Dust-proof , Waterproof
Adhesive: 3M467 & 3M468 Material: PET /PC
High Light:

printed circuits board

,

flexible printed circuit board

Custom Automatic Control Flexible Membrane Switch OEM / ODM With LED





Specifications:



1 material : PET /PC
2 adhesive: 3M467 & 3M468
3 High life time :>1million times
4 Pass:ISO9001:2008RoHS.
5 High quality





rated current 25-100mA,0~30V DC
material PET /PC
Adhesive 3M467,3M468,and no adhesive
Feature moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof
wire lead resistance <1Ω/CM
Insulation resistance <100MΩ,250V DC







Specialize in manufactuing membrane switch



Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape

EL backlight +Rubber keys

Aluminum plate+Rubber keys

Metal domes

Flat without Tactile Effect

Embossing with Tactile Effect

Embossing with Metal Dome

Membrane Switch with FPC





Metal  Dome Membrane Switch
Material Matte PC(smooth),gloss PC+matte oil ,gloss PC,PET,and PVC
Thickness 0.05-1.0mm
LED windows Transparent,translucent,matte,gloss
Embossed keys No embossed keys and domes,domes without embossed keys,embossed keys without domes,embossed keys and domes
Adhesive 3M467,3M468,and no adhesive
Tail Tail with clear mask or green mask





Applications:



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.







Technical Specification Of Membrane Switch



wire lead resistance:

<1Ω/CM



Life time:

>1 Million times

rated current:

25-100mA,0~30V DC



Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC



Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC



Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm



Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm



Tail flexiblility:

any angle within 180 degree





Competitive Advantage:



1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2.Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3.Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.

6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.

7.Customized specification is available and keys can make different shapes
