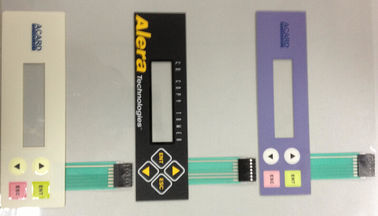

Waterproof PCB Membrane Switch For Communication Promotional Pink

Waterproof PCB Membrane Switch For Communication Promotional Pink
Waterproof PCB Membrane Switch For Communication Promotional Pink

Large Image :  Waterproof PCB Membrane Switch For Communication Promotional Pink

Product Details:
Place of Origin: DongGuan China
Brand Name: HHC
Certification: ISO9001:2008,
Model Number: HC-MSP-265
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton,56*34*33cm. or according to t
Delivery Time: Within 3 weeks based on MOQ
Payment Terms: T/T,L/C
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
High Light:

custom membrane switch

,

membrane switch panel

Waterproof PCB Membrane Switch For Communication Promotional Pink





Quike detailes:



1. Flexibility
It can be bent, folded and deformed freely. Its coil radius is small and it can be moved freely along X, Y, Z axis separately.
2. Occupy small space
Since it is light and thin, it makes best use of the narrow space in the instruments. (average thickness 1.1-0. Am)
3. Light weight
Its weight is very light because the design of FPC is not based on mechanical strength but current load.
4. Good seal capability
The flexible board could be designed for low- tensile seal enduring the adverse environment.
5. Steady transmission
The wiring pattern and the conductor distance can be freely designed according to electric parameters. Once the pattern is finalized, parameters of R. L. C is steady accordingly.
6. Easy assembly
The property of terminal is good enough to be fixed to any equipment by soldering, inserting, riveting and gluing. Manual mistakes in traditional wiring are avoided.





Description:


1. Material:Matte PC(smooth),gloss PC+matte oil ,gloss PC,PET,and PVC
2. Multicolored printed ,embossed
3. Poly dome available
4. Adhesive:3M467,3M468,or no adhesive
5. Feature: Good exterior





Specifications:


As per request OEM/OEM
Material: PI: 1 mil
Cu: 1 oz
PI: 1 mil
Surface treatment: pure-tin plating
Minimum hole dimension: 0.3mm
Minimum linear width: 0.08mm
Minimum linear distance: 0.08mm
External tolerance:+/-0.05mm
Welding resistance: 280 more than 10 seconds
Peeling Strength: 1.2kg/cm2
Heat resistance: -200 to +300 degrees C
Surface resistivity: 1.0 x 1011
Bandability: meet IPC standard
Chemical resistance: meet IPC standard




Competitive Advantage:


1.short: assemble shorter working hours
All lines in the configuration is complete. Save extra FPC PCB FPC PCB wiring connection work
2. Small: small volume PCB
Can effectively reduce the products volume. The increase is to carry on the convenience
3. Light: weight lighter than PCB (hard)
Can reduce the weight of the final product
4.Thin: thinner than the thickness of hard PCB board.
Can improve the softness. Strengthen then limited space for three dimensional assembly
5.quick delivery & best services & OEM /ODM available.





Applications:


1.The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.
2.Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen
3.CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around
4.Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.
5.The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc
